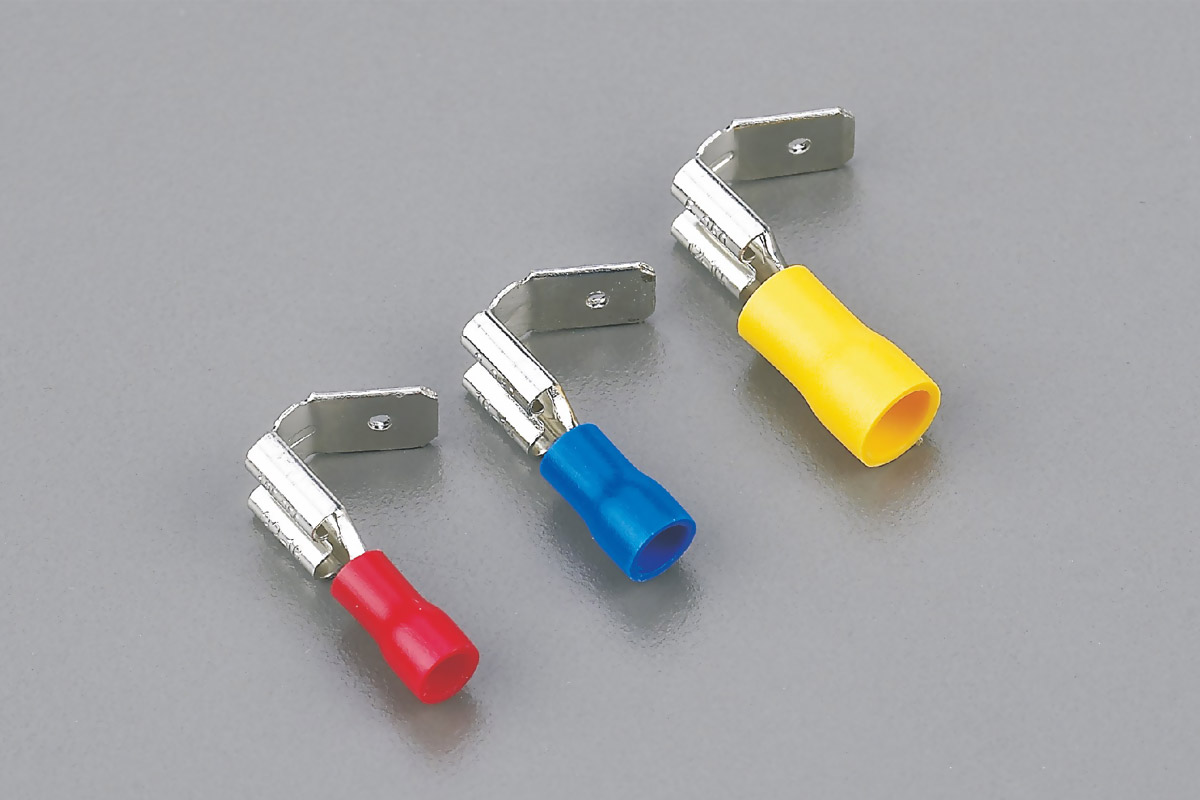

Fully Vinyl Insulated Disconnects

Labels:
  • Fully Vinyl Insulated Disconnects 17-1
Overview


Technical Parameters

编 号
Item NO.
Mema Tab
(mm)

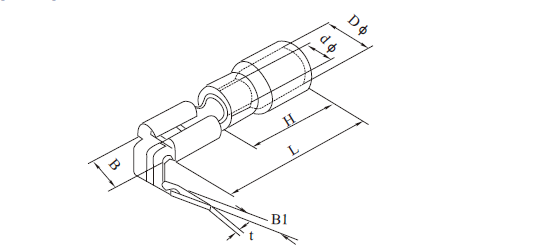

尺寸Dimension
B
(mm)
B1
(mm)
H
(mm)

(mm)

(mm)
L
(mm)
导线截面:
0.5~1.5mm² (22~16)
最大电流:Imax=10A
PBDD1.25-2500.8×6.357.46.310.03.81.721.5
导线截面:
1.5~2.5mm (16~14)
最大电流:Imax=15A
PBDD2-2500.8×6.357.46.310.04.32.321.5
导线截面:
4~6mm (12~10)
最大电流:Imax=24A
PBDD5.5-2500.8×6.357.46.314.05.73.425.0
