Overview
Technical Parameters

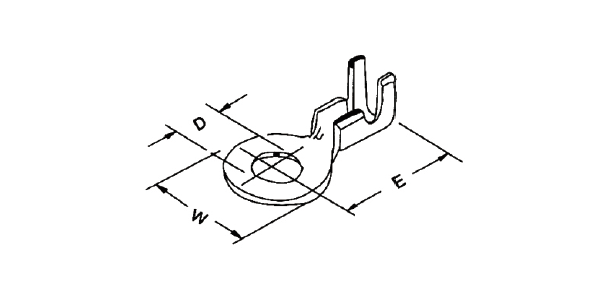

| 编 号 Item NO. | 材质 Metal | 适用电线 Wire Range | 尺寸Dimension | 材料厚度 Thickness | ||
| D | W | E | ||||
| Y3-2.5 | Brass | 0.5-2.5 | 3.2 | 9.0 | 17.0 | 0.6 |
| DJ431-3A | 0.5-0.8 | 3.5 | 10.0 | 17.0 | 0.5 | |
| DJ431-5A | 0.5-0.8 | 5.2 | 12.0 | 17.0 | 0.5 | |
| DJ431-6A | 0.5-0.8 | 6.2 | 15.0 | 17.0 | 0.5 | |
| DJ431-8B | 1.0-1.5 | 8.2 | 19.0 | 19.0 | 0.5 | |
| DJ431-10B | 1.0-1.5 | 10.5 | 0.8 | |||
