◆Operating temperature:-55℃ to 105℃
◆start shrinkage temperature：60℃
◆Minimum complete shrinkage temperature：130℃
◆Soldering tin begins to dissolve：111℃
◆Soldering tin completely dissolving temperature：118℃
◆Insulation material：PE
①Heat shrinkable Tubing

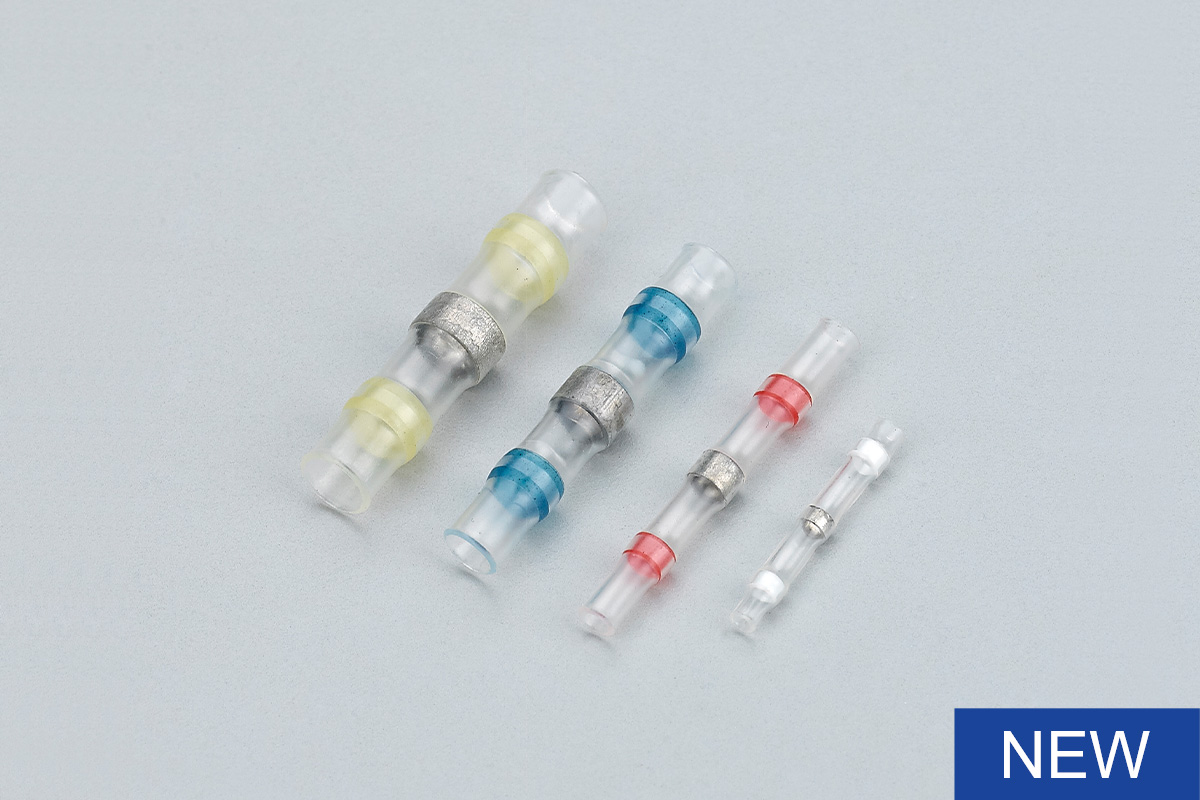

②Low temperature solder sleeve
③Waterproof hot melt adhesive
Technical Parameters
| 编 号 Item NO. | 尺 寸 Dimension (mm) | 导线面积 A.W.G mm² | 颜色 Color | ||||
| A | L | B | B&C | C | |||
| HTX-S11 | 1.7 | 2.6 | 1.0 | 1.7 | 0.76 | 26-24 A.W.G 0.25-0.34mm2 | 红色 Red |
| HTX-S21 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18 A.W.G 0.5-1.0mm2 | 红色 Red |
| HTX-S31 | 4.5 | 40 | 2.3 | 4.5 | 2.0 | 16-14 A.W.G 1.5-2.5mm2 | 蓝色 Blue |
| HTX-S41 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10 A.W.G 4.0-6.0mm2 | 黄色 Yellow |
| A |
| 110：0.110＂(2.8mm) |
| 187：0.187＂ (4.75mm) |
| 205：0.205＂ (5.2mm) |
| 250：0.250＂ (6.35mm) |
| 312：0.312＂(8.0mm) |
| 375：0.375＂(9.4mm) |
| 156：0.156＂ (4mm) |
| 195：0.195＂(5mm) |
| B | ||
| 导线号 | 使用导线截面(mm²) | 美国线规(A.WG) |
| 1.25 | 0.5-1.5 | 22-16 |
| 2 | 1.5-2.5 | 16-14 |
| 3.5 | 2.5-4 | 14-12 |
| 5.5 | 4-6 | 12-10 |
| 8 | 6-10 | 8 |
| 14 | 10-16 | 6 |
| 22 | 16-25 | 4 |
| 38 | 25-35 | 2 |
| 60 | 50-70 | 1/0 |
| 70 | 70-95 | 2/0 |
| 80 | 95-120 | 3/0 |
| 100 | 120-150 | 4/0 |
| 150 | 150-185 | 250/300MCM |
| 180 | 185-240 | 300/350MCM |
| 200 | 240-300 | 400/500MCM |
| 325 | 300-400 | 500/600MCM |
| C | |
| 螺栓通过口直径(mm) | 美制螺栓号 |
| 3.2 | #4 |
| 3.7 | #6 |
| 4.3 | #8 |
| 5.3 | #10 |
| 6.4 | 1/4 |
| 8.4 | 5/16 |
| 10.5 | 3/8 |
| 11.0 | 7/6 |
| 13.0 | 1/ 2 |
| 15.0 | 9/16 |
| 17.0 | 5/8 |
| 18.0 | 11/16 |
| 21.0 | 3/4 |
| 23.0 | 7/8 |
| 25.0 | 15/16 |
| 28.0 | 1 |
