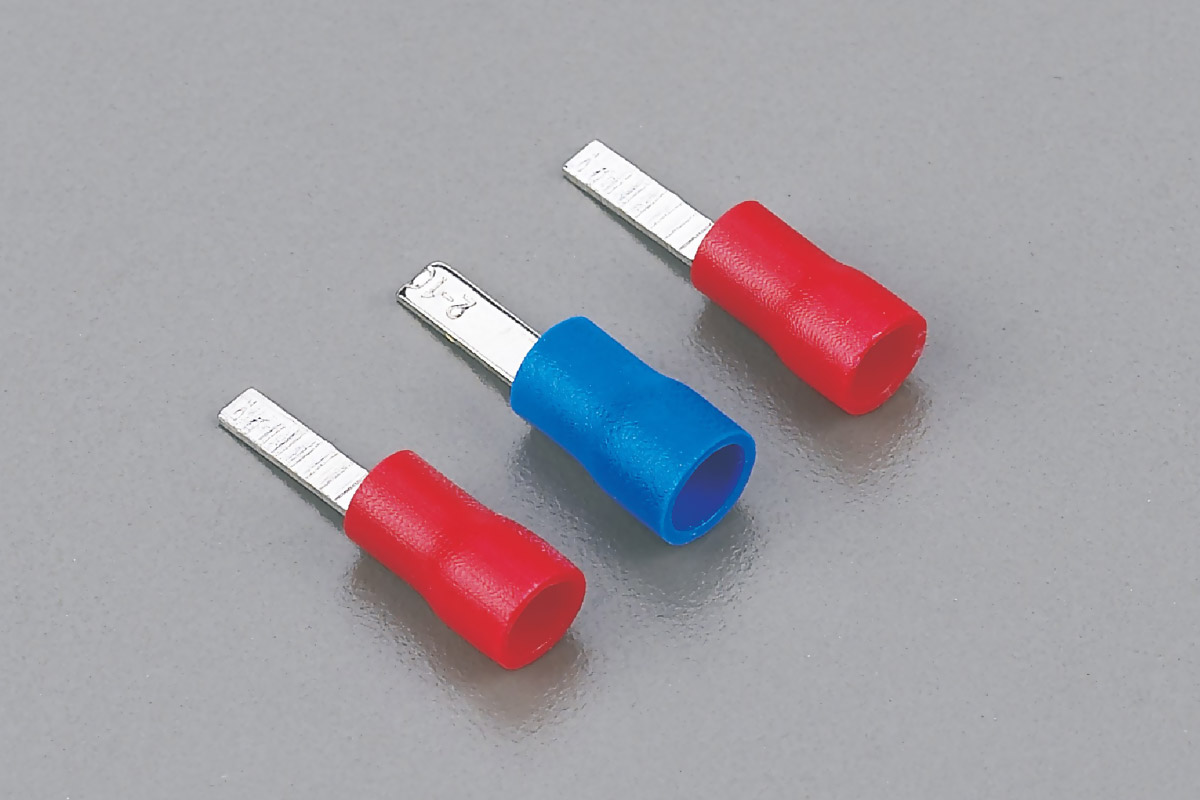

Insulated Chip-shaped Terminals

Labels:
  • Insulated Chip-shaped Terminals 7-1
Overview


Technical Parameters

编 号
Item NO.

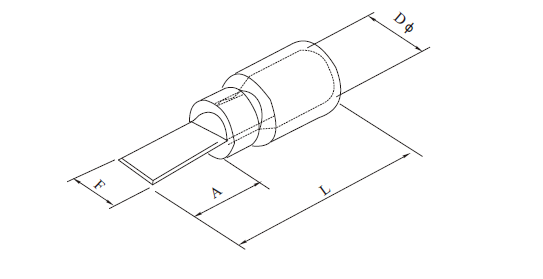

尺寸Dimension
F
(mm)
L
(mm)
A
(mm)
D
(mm)
导线截面:
0.5~1.5mm² (22~16)
最大电流:Imax=19A
DBV1.25-102.320.010.04.3
DBV1.25-113.021.011.0
DBV1.25-143.024.014.0
DBV1.25-182.328.018.0
导线截面:
1.5~2.5mm²(16~14)
最大电流:Imax=19A
DBV 2-92.819.09.04.9
DBV 2-152.325.015.0
DBV 2-182.328.018.0
导线截面:
4~6mm² (12~10)
最大电流:Imax=48A
DBV 5.5-102.822.510.05.6
