• Chip-shaped Naked Terminals 9-1

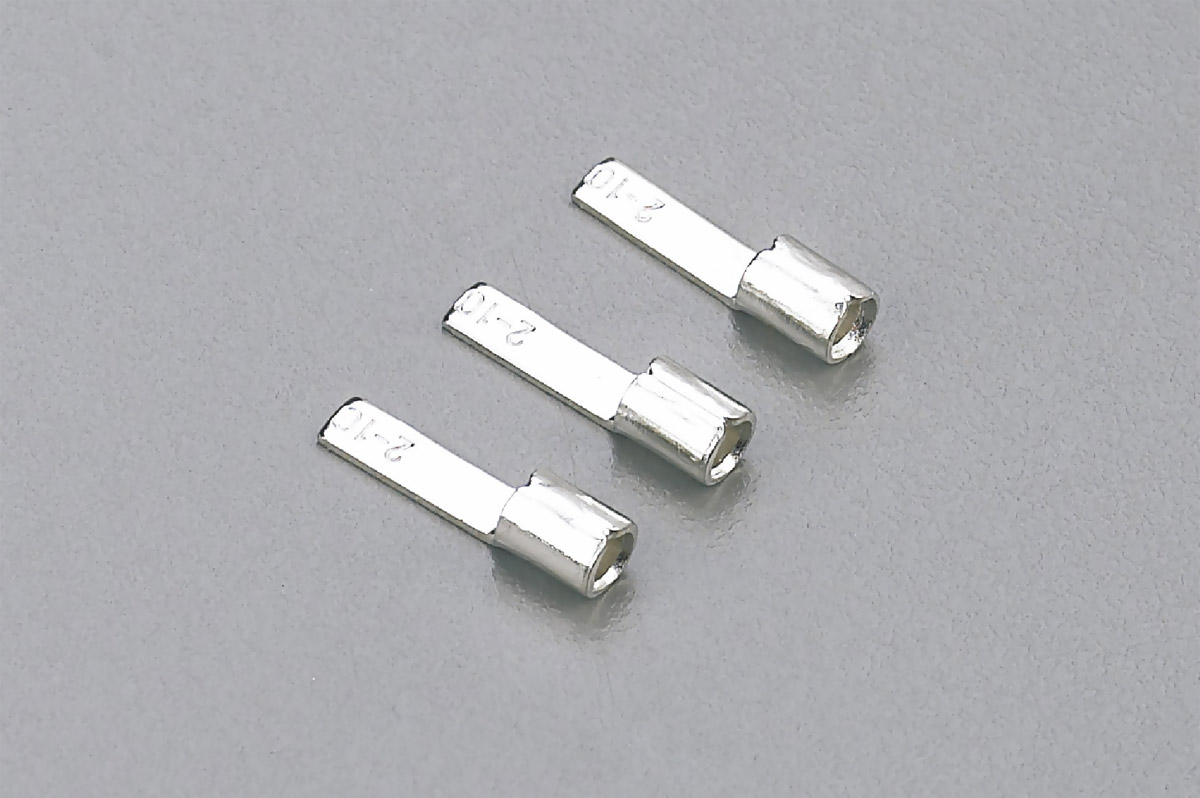

Overview


Technical Parameters

编 号
     Item NO.

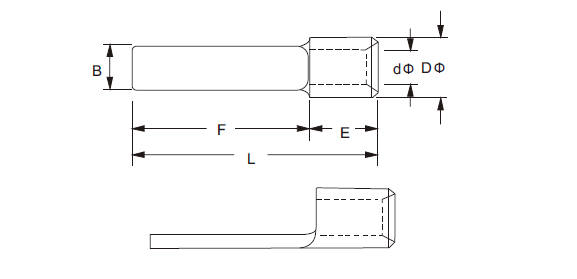

尺寸Dimension
B (mm)L (mm)Fφ(mm)E(mm)D φ (mm)d φ (mm)
导线截面:
     0.5~1.5mm² (美国线规22~16)
     最大电流:Imax=19A
DBN 1.25-102.314.810.04.83.41.7
DBN 1.25-113.015.811.0
DBN 1.25-143.018.814.0
DBN 1.25-182.322.818.0
导线截面:
     1.5~2.5mm² (美国线规16~14)
     最大电流:Imax=27A
DBN 2-92.313.89.04.84.12.3
DBN 2-182.322.818.0
导线截面:
     4~6mm² (美国线规12~10)
最大电流:Imax=48A
DBN 5.5-102.814.810.06.05.63.4
DBN 5.5-144.521.014.0
DBN 5.5-184.523.018.0
DBN 8-145.022.514.08.57.24.5
DBN 14-166.030.616.014.09.06.5
