Overview

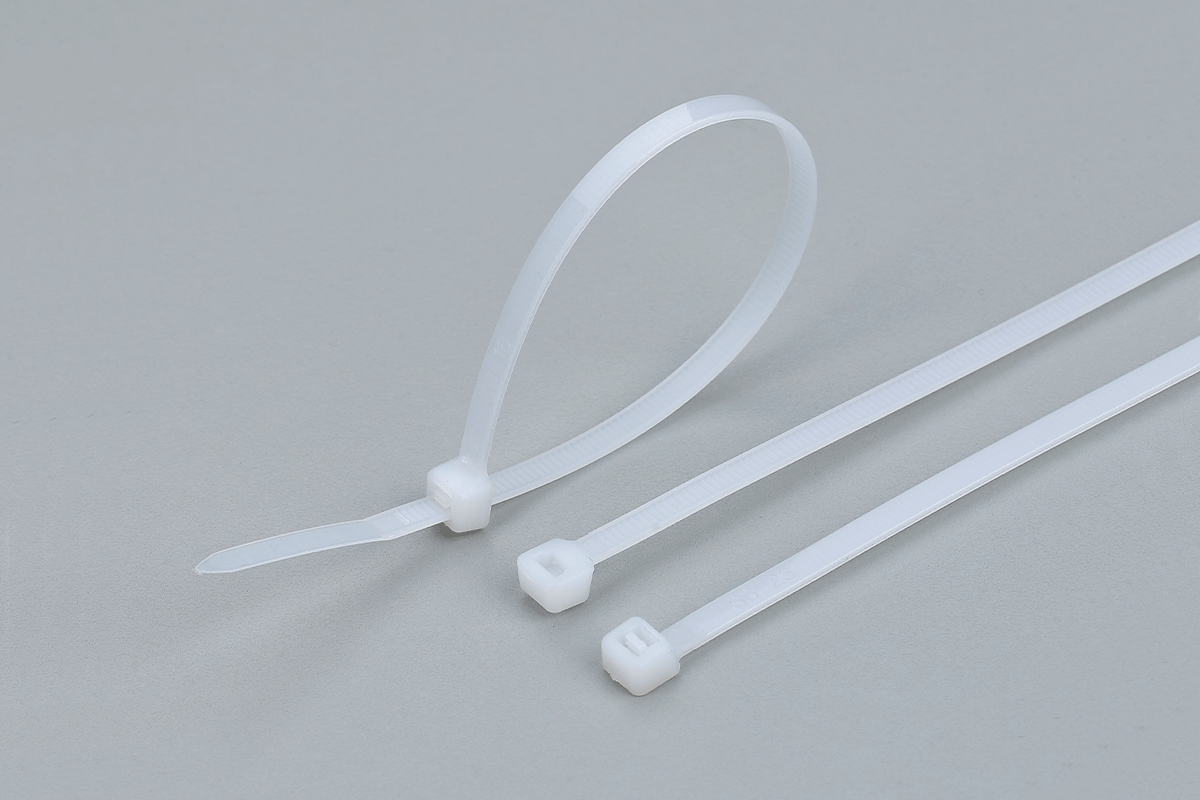

◆Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-20℃ to 120℃
◆Installation temperature：-10℃ to 120℃
◆Color：Natural
Technical Parameters
| 编 号 Item NO. | L(长) | W(宽) (mm) | (最大)捆扎范围 Max.Bundle DIA.(mm) | 最小拉力 Tensile Strength | ||
| Inch | mm | LBS | KGS | |||
| CHS-3×100HTR | 4″ | 100 | 2.5 | 22 | 18 | 8 |
| CHS-4×150HTR | 6″ | 150 | 3.6 | 35 | 40 | 18 |
| CHS-4×200HTR | 8″ | 200 | 3.6 | 53 | 40 | 18 |
| CHS-5×200HTR | 8″ | 200 | 4.8 | 53 | 50 | 22 |
| CHS-5×250HTR | 10” | 250 | 4.8 | 65 | 50 | 22 |
| CHS-5×300HTR | 11 5/8" | 300 | 4.8 | 82 | 50 | 22 |
| CHS-5×380HTR | 15" | 380 | 4.8 | 105 | 50 | 22 |
| CHS-8×300HTR | 11 5/8" | 300 | 7.6 | 80 | 120 | 55 |
| CHS-8×350HTR | 13 3/4" | 350 | 7.6 | 90 | 120 | 55 |
| CHS-8×400HTR | 15 3/4" | 400 | 7.6 | 105 | 120 | 55 |
| CHS-8×500HTR | 19 11/16" | 500 | 7.6 | 145 | 120 | 55 |
