Overview

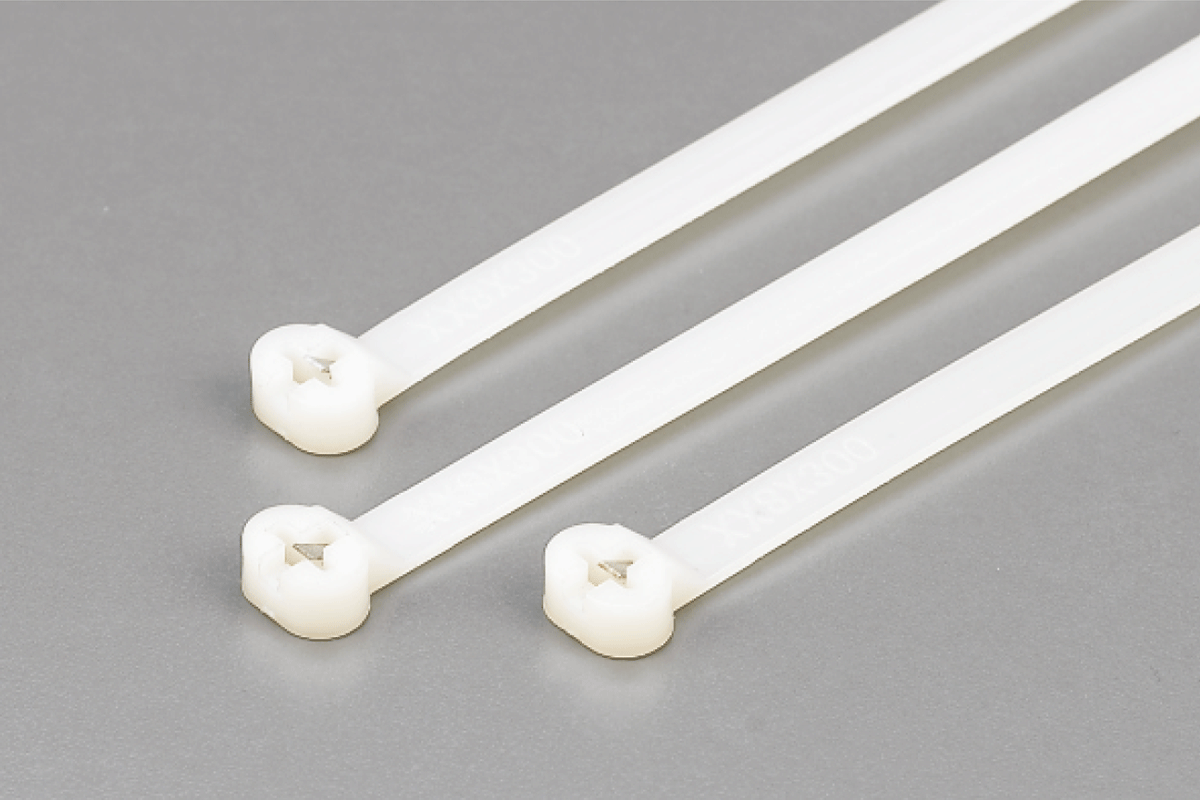

◆Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Natural, Black,UV black, other colors are available as requested.
◆Feature：The head is embedded with stainless steel,which makes cable
ties more stable and durable.
Technical Parameters
| 编 号 Item NO. | L(长) | W(宽) (mm) | (最大)捆扎范围 Max.Bundle Dia.E(mm) | 最小拉力 Min.Loop Tensile Strength | ||
| Inch | mm | LBS | KGS | |||
| NZ-3×100 | 4″ | 100 | 3.0 | 25 | 18 | 8 |
| NZ-4×150 | 6″ | 150 | 4.0 | 35 | 45 | 20 |
| NZ-4×200 | 8″ | 200 | 4.0 | 50 | 45 | 20 |
 NZ-4×280 | 11″ | 280 | 4.0 | 70 | 45 | 20 |
| NZ-4×370 | 14 1/2" | 370 | 4.0 | 102 | 45 | 20 |
| NZ-5×250 | 10" | 250 | 5.0 | 65 | 50 | 22 |
| NZ-5×300 | 12" | 300 | 5.0 | 80 | 50 | 22 |
| NZ-5×350 | 13"3/4" | 350 | 5.0 | 90 | 50 | 22 |
| NZ-5×430 | 17" | 430 | 5.0 | 115 | 50 | 22 |
| NZ-8×145 | 5"3/4" | 145 | 8.0 | 32 | 120 | 55 |
| NZ-8×175 | 7" | 175 | 8.0 | 42 | 120 | 55 |
| NZ-8×200 | 8" | 200 | 8.0 | 50 | 120 | 55 |
| NZ-8×240 | 9 1/2" | 240 | 8.0 | 56 | 120 | 55 |
| NZ-8×300 | 12" | 300 | 8.0 | 80 | 120 | 55 |
| NZ-8×400 | 15 3/4" | 400 | 8.0 | 100 | 120 | 55 |
| NZ-10×300 | 12" | 300 | 10.0 | 80 | 135 | 60 |
| NZ-10×350 | 14" | 350 | 10.0 | 90 | 135 | 60 |
| NZ-10×400 | 15 3/4" | 400 | 10.0 | 105 | 135 | 60 |
| NZ-10×450 | 17 3/4" | 450 | 10.0 | 115 | 135 | 60 |
| NZ-10×500 | 17 11/16" | 500 | 10.0 | 150 | 135 | 60 |
| NZ-10×600 | 23 5/8" | 600 | 10.0 | 170 | 135 | 60 |
