Product introduction
◆Material: Heat stabilised(PA66HS).
◆Application temperature:-40℃-105℃.
◆Features: lt is only necessary to install the head on a bolt and fix it with anut. lt is a strong shock resistant structure, which can also be used inoutdoor and high-temperature environments.

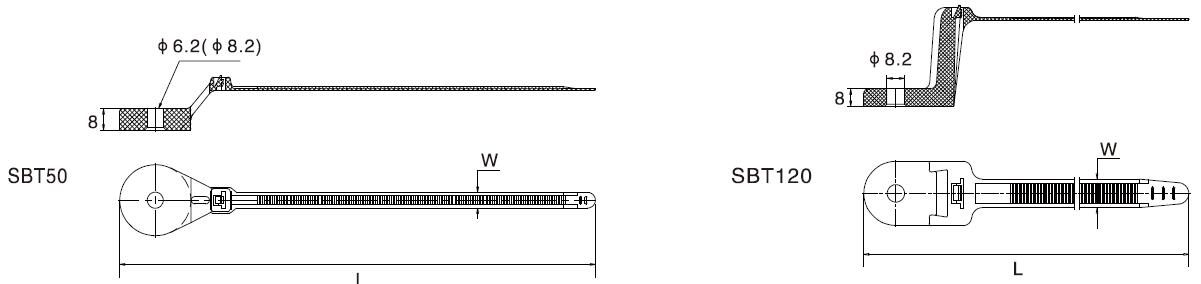

Technical parameter
编号 Item NO. | L(长) | W(宽) (mm) | (最大)捆扎范围 Max.Bundle DIA.(mm) | 最小拉力 Tensile Strength | 孔径(φ) Hole Dia. | 机板厚度 Panel Thickness | ||
Inch | mm | LBS | KGS | mm | mm | |||
SBT50-M6 | 7.1/10'' | 180 | 6.0 | 35 | 50 | 22 | 6.2 | M6 |
SBT50-M8 | 7.1/10'' | 180 | 6.0 | 35 | 50 | 22 | 8.2 | M8 |
SBT120-M8 | 12'' | 300 | 13.0 | 60 | 120 | 55 | 8.2 | M8 |
