Overview
◆Material:Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature:-40℃ to 85℃
◆Installation temperature:-20℃ to 85℃
◆Color:Natural, Black,UV black, other colors are available as requested.
Technical Parameters

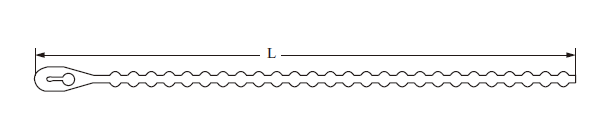

编 号 Item NO. | L(长) | (最大)捆扎范围 Max.Bundle DIA.(mm) | 最小拉力 Tensile Strength | ||
Inch | mm | LBS | KGS | ||
CHS-120KT | 4 3/4″ | 120 | 25 | 18 | 8 |
CHS-150KT | 6″ | 150 | 35 | 18 | 8 |
CHS-180KT | 7″ | 180 | 45 | 18 | 8 |
