Overview

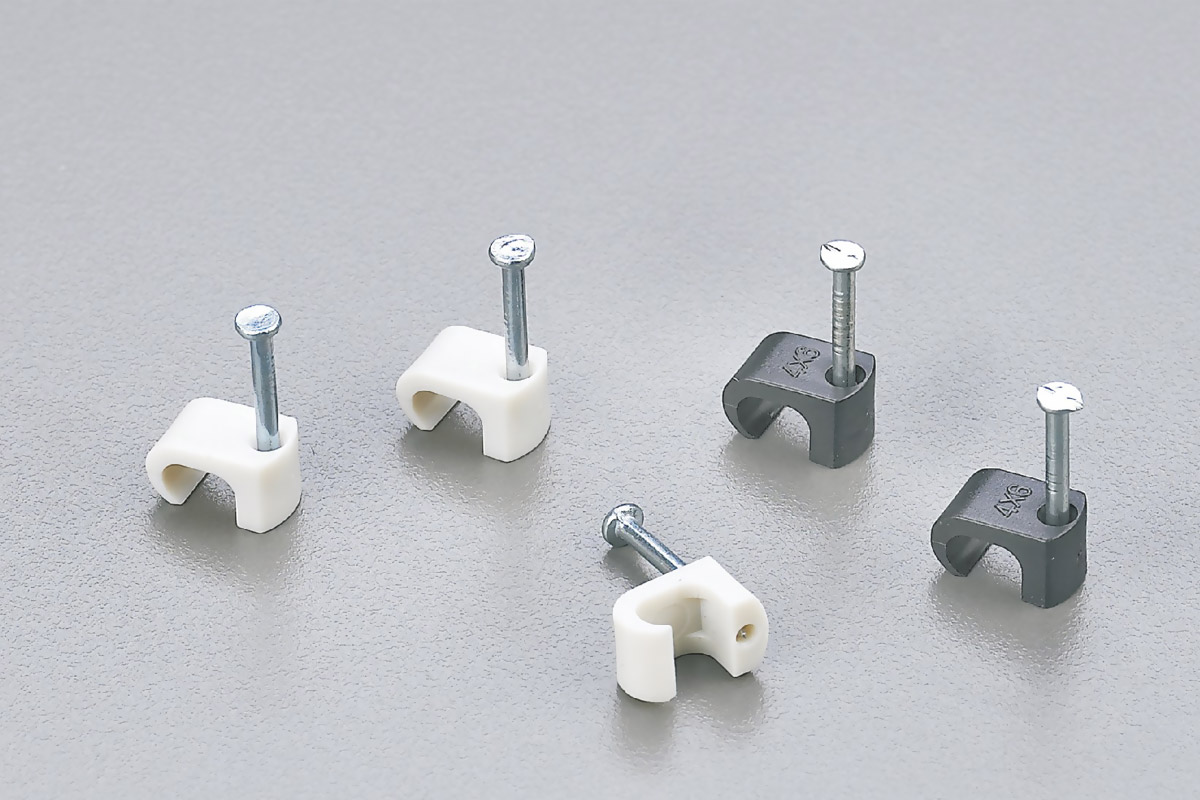

◆ PE(white, grey), high elasticity, impact resistance.
◆ Inserting type, nailattached in clips.Save time and cost.
Technical Parameters

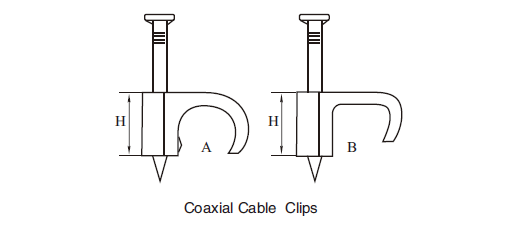

| 编 号 Item NO. | 宽 度(W) (mm) | 高(H) (mm) | 钢 钉 Nail(mm) | 形状 Type |
| NC-0406A | 4~6 | 7.5 | 1.6×16 | A |
| NC-0407 | 4~7 | 7.5 | 1.8×20 | |
| NC-0607 | 6~7 | 7.5 | 2.1×19 | |
| NC-0812 | 8~12 | 12.0 | 2.1×25 | |
| NC-1216 | 12~16 | 15.5 | 2.3×32 | |
| NC-1619 | 16~19 | 19.0 | 2.6×38 | |
| NC-2025 | 20~25 | 22.5 | 2.6×40 | |
| NC-0406B | 4~6 | 7.5 | 1.6×16 | B |
| NC-0508 | 5~8 | 7.3 | 2.1×25 | |
| NC-0610 | 6~10 | 8.3 | 2.1×25 |
| 编 号 Item NO. | 宽 度 (W) (mm) | 高(H) (mm) | 钢 钉 Nail(mm) | 形状 Type |
| NC3-5 | 3-5 | 5.0 | 1.2×20 | A |
| NC5-7 | 5-7 | 7.9 | 1.2×20 | |
| NC7-10 | 7-10 | 10.3 | 1.6×25 | |
| NC8-12 | 8-12 | 11.8 | 2.0×31 | |
| NC10-14 | 10-14 | 13.0 | 2.0×31 | |
| NC14-20 | 14-20 | 16.5 | 2.1×35 | |
| NC3×5 | 3×5 | 5.0 | 1.2×20 | B |
| NC4×6 | 4×6 | 5.8 | 1.6×16 | |
| NC6×9 | 6×9 | 7.6 | 1.6×24 |
