Overview

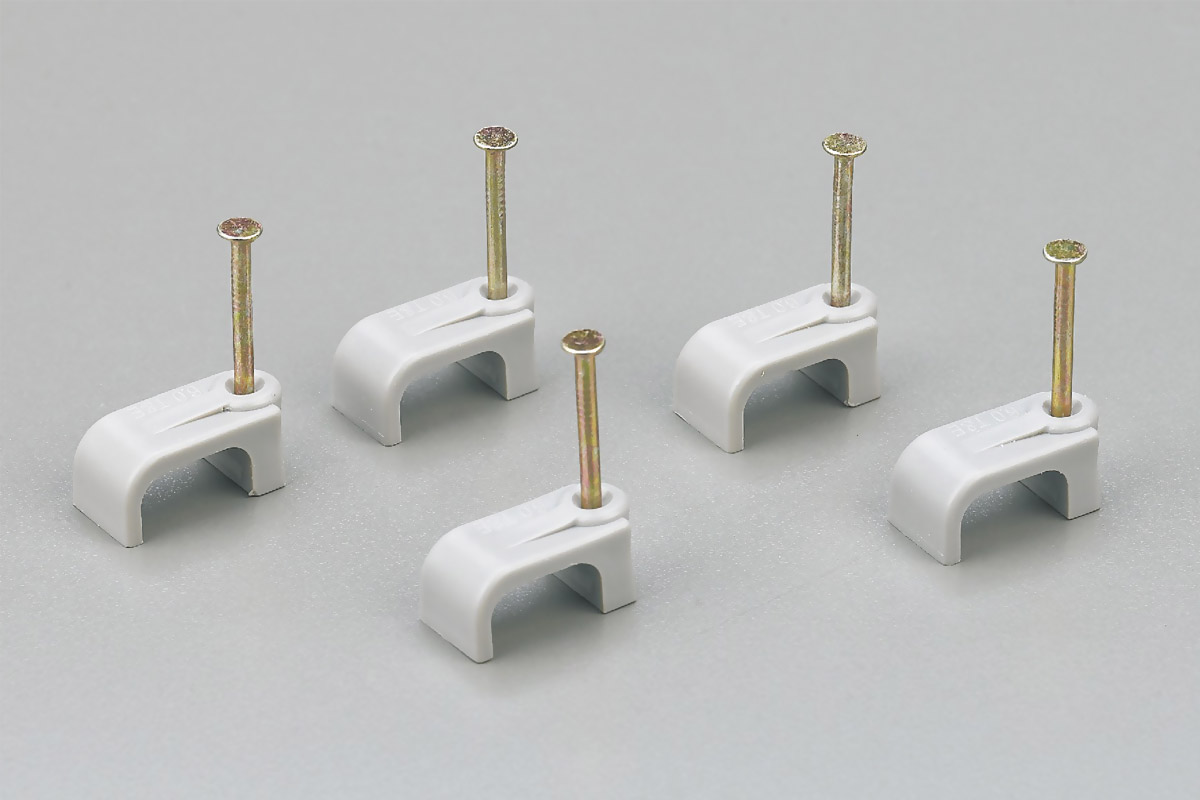

◆ PE(white, grey), high elasticity, impact resistance.
◆ Inserting type, nailattached in clips.Save time and cost.
Technical Parameters

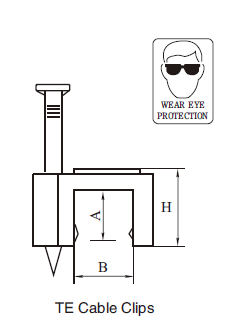

| 编 号 Item NO. | 高(H) (mm) | A(mm) | B(mm) | 钢 钉 Nail(mm) |
| TE-1.5 | 7.3 | 4.5 | 9.0 | 2.1×23 |
| TE-2.5 | 8.2 | 5.5 | 10.0 | 2.1×23 |
| TE-4 | 8.5 | 5.6 | 12.0 | 2.1×23 |
| TE-6 | 10.5 | 7 | 14.0 | 2.1×28 |
| TE-10 | 11.5 | 8.5 | 17.0 | 2.1×28 |
| TED-1.5 (Double) | 9.3 | 4.9 | 17.0 | 2.1×23 |
| TED-2.5 (Double) | 8.4 | 5.8 | 20.0 | 2.1×23 |
