Overview
◆ PP, Polypropylene, inflaming retarding, low transparency, low rigidity,good bounce impact force.
◆ Application Termperature：- 30℃ to 90℃, short time is 110℃
◆ Iron tube screw.

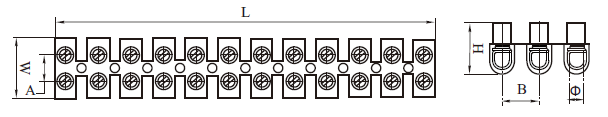

Technical Parameters
| 编 号 Item NO. | L(mm) | W(mm) | H(mm) | A(mm) | B(mm) | 孔径Φ(mm) | Rated Current |
| TBI-2.5mm² | 93.7 | 15.5 | 13 | 6.5 | 8 | φ3.1 | 3A |
| TBI-6mm² | 111.7 | 16.5 | 15.9 | 7 | 9.5 | φ4 | 6A |
| TBI-10mm² | 133.8 | 20.7 | 18.9 | 10 | 11.4 | φ4.9 | 10A |
| TBI-16mm² | 152.3 | 24 | 20.8 | 12 | 13 | φ5.6 | 30A |
| TBI-25mm² | 191.5 | 30 | 23.8 | 11 | 16.4 | φ6.8 | 60A |
