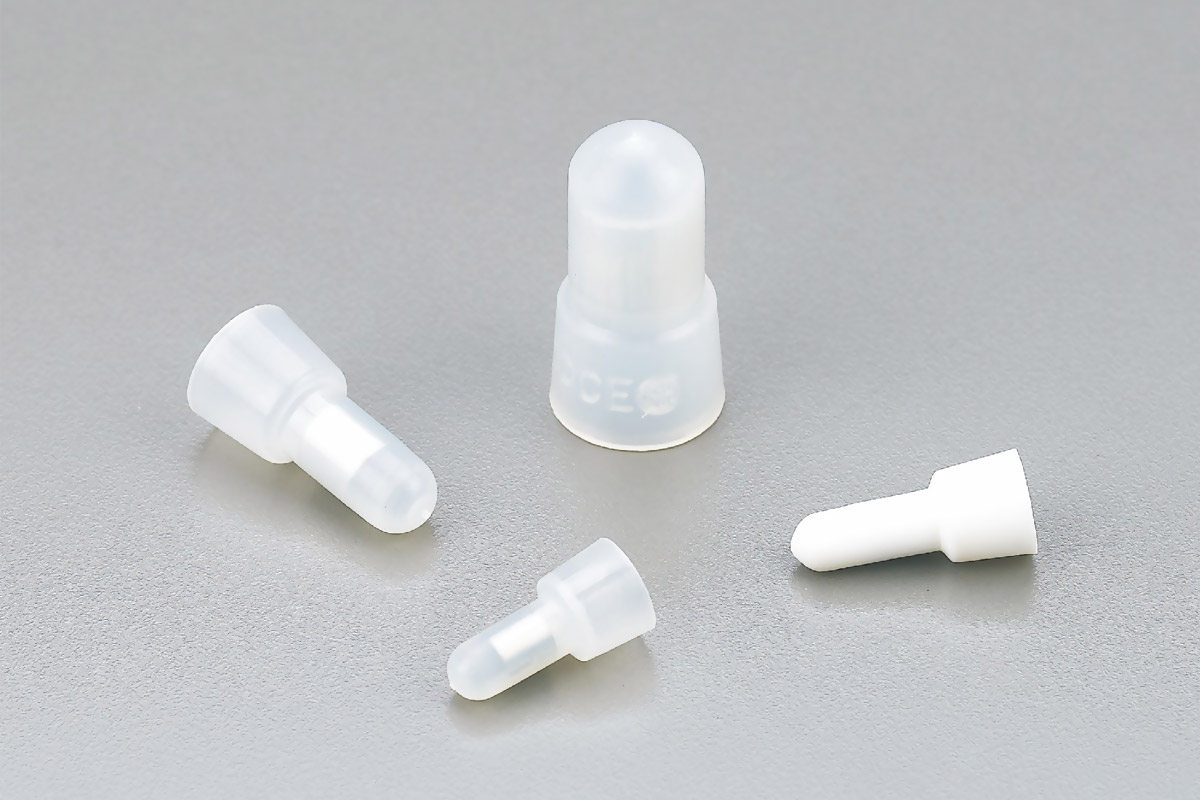

Overview
◆ Shell material: Nylon 66, 94V-2, certificated agree, by UL.
◆ Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.
◆ Feature: Nylon shell , long copper tube ,easy to conduct electricity and hold wire tightly
Technical Parameters

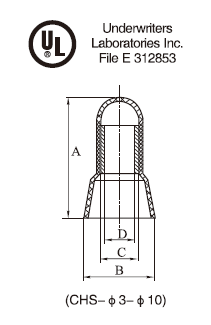

| 编 号 Item NO. | A(高) (mm) | W(宽) | 铜管内径 D(mm) | 适用电线范围 mm² | Suitable Wires Awg | |
| B (mm) | C(mm) | |||||
 CHS-φ3 | 18 | 9 | 3.6 | 2.8 | 1.25 | 22-16 |
 CHS-φ4 | 21 | 9.5 | 3.9 | 3 | 2 | 16-14 |
| CHS-φ5 | 22.5 | 10.5 | 4.8 | 4 | 5.5 | 12-10 |
| CHS-φ6 | 24 | 12 | 5.6 | 4.8 | 8 | 8 |
| CHS-φ7 | 25.5 | 13 | 6.5 | 5.2 | 10 | 8-6 |
| CHS-φ8 | 25.5 | 14 | 7.5 | 6 | 13 | 6 |
| CHS-φ10 | 29.5 | 15.5 | 9.3 | 7.8 | 16 | 4 |
