Product introduction
◆Material: Heat stabilised(PA66HS).
◆Application temperature: -40℃-105℃.
◆Installation temperature:-10℃-105℃.
◆Features:Easy assembly by hand , For edges of 1-3 mm or 3-6 mm.Integrated metal clamp holds clip firmly in place , ldeal for applicationswhere holes or adhesives are not suitable.

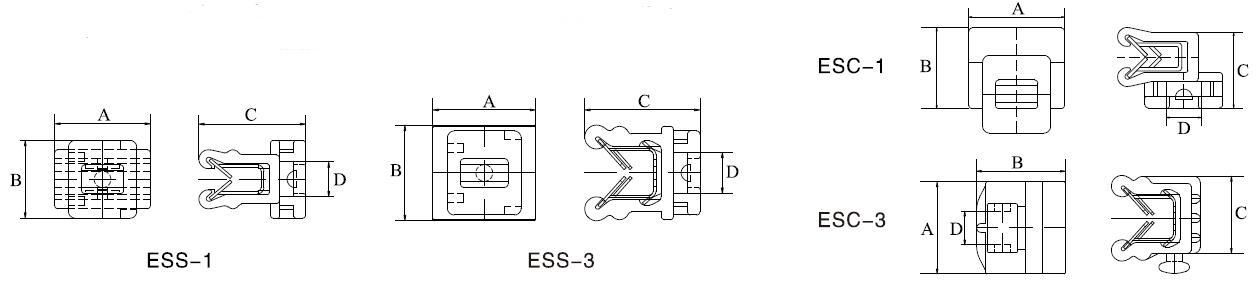

Technical parameter
| 编号 Item NO. | 配合扎带宽度 Matched cable ties width(mm) | A | B | C | D | 钣金厚度 Panel Thickness | 备注 Remark |
| mm | mm | mm | mm | mm | |||
| ESS-1 | 4.8 | 15 | 14.5 | 12.6 | 5.5 | 1-3 | 上穿扎带 |
| ESS-3 | 4.8 | 15 | 14 | 16.9 | 6 | 3-6 | 上穿扎带 |
| ESC-1 | 4.8 | 14 | 11.8 | 11 | 5.1 | 1-3 | 侧穿扎带 |
| ESC-3 | 4.8 | 14 | 11.4 | 15.8 | 5 | 3-6 | 侧穿扎带 |
