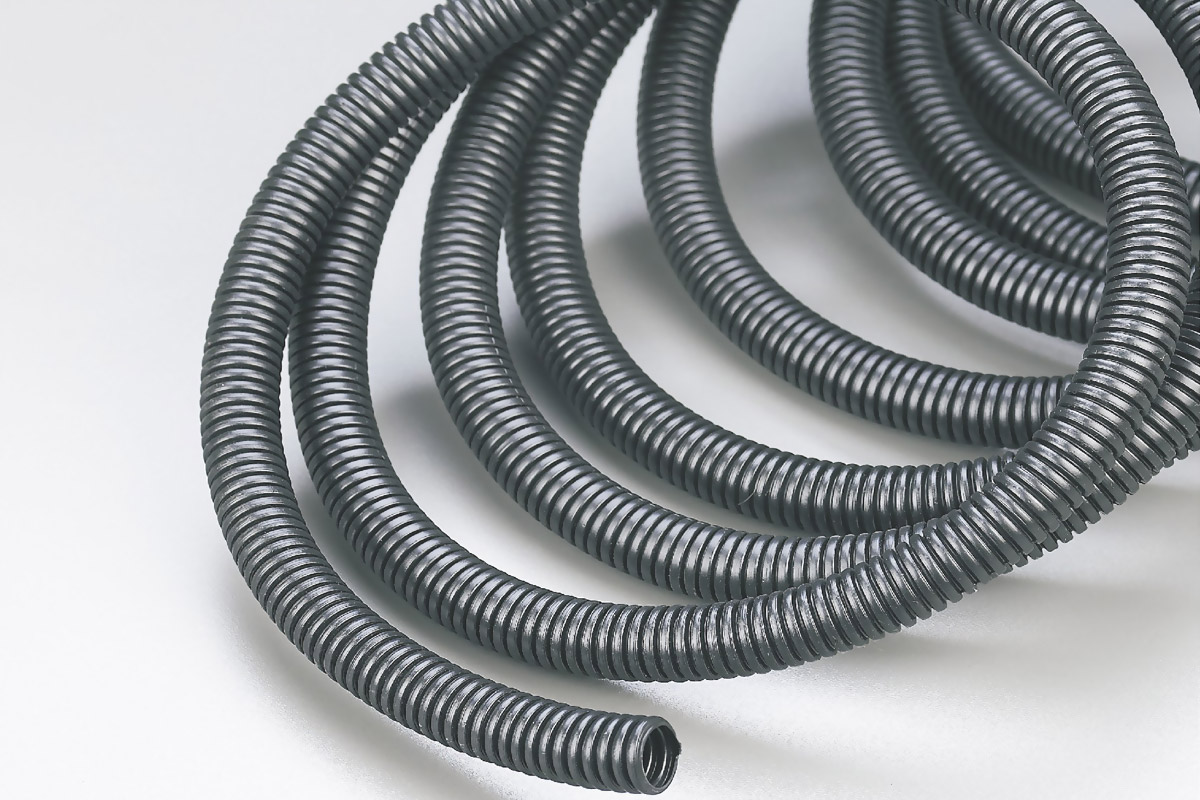

Corrugated pipe



Overview

◆ Material: polyamide (PA6) / polyethylene (PE) / polypropylene (PP) / HB according to UL 94.
◆ Temp: polyamide (PA6)-40℃~+115℃+150℃
polyethylene (PE)-50℃~+80℃+100℃
polypropylene (PP)-40℃~+110℃+130℃
◆ Colour: Black and grey.
◆ Properties: Liquid and Dust proof; Highly resistant to oil, acid and solvents;Free of silicon, cadmium, halogen; Flexible, Iuster On Surface, abrasion resistant;
Racking resistant high mechanical strength; Black tubings are UV-resistant.
◆ Application: For protectively insulated electrical installations.

Technical Parameters

PA尼龙波纹管

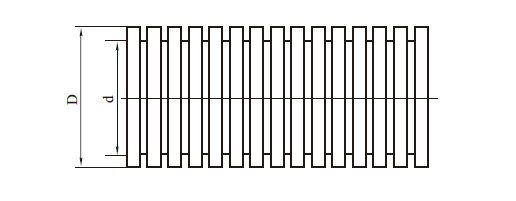

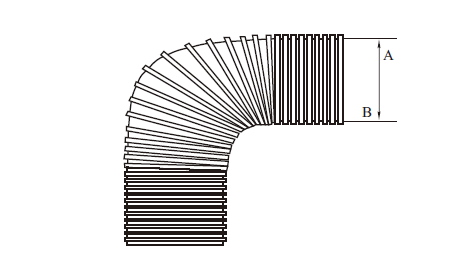

规格 Thread	内径×外径 int.×ext.(mm)	弯曲半径 Dimensions mm±10%		每卷米数米/卷 Lengths in rings m/roll
规格 Thread	内径×外径 int.×ext.(mm)	静态 Stat	动态 Dyn	每卷米数米/卷 Lengths in rings m/roll
AD10.0	6.5×10.0	14.0	35.0	100
AD11.6	8.00×11.6	17.0	40.0	100
AD13.0	9.50×13.0	20.0	45.0	100
AD15.8	12.0×15.8	27.0	55.0	100
AD18.5	14.3×18.5	35.0	65.0	100
AD21.2	17.0×21.2	40.0	75.0	100
AD25.5	21.0×25.5	43.0	85.5	100
AD28.5	23.0×28.5	47.0	100.0	50
AD34.5	29.0×34.5	58.0	120.0	50
AD42.5	36.0×42.5	69.0	150.0	50
AD54.5	48.0×54.5	83.0	190.0	25

PE聚乙烯波纹管

规格 Thread	内径×外径 int.×ext.(mm)	弯曲半径 Dimensions mm±10%		每卷米数米/卷 Lengths in rings m/roll
规格 Thread	内径×外径 int.×ext.(mm)	静态 Stat	动态 Dyn	每卷米数米/卷 Lengths in rings m/roll
AD10.0	6.5×10.0	13.0	33.0	100
AD11.6	8.00×11.6	15.0	37.0	100
AD13.0	9.50×13.0	18.0	41.0	100
AD15.8	12.0×15.8	22.0	50.0	100
AD18.5	14.3×18.5	33.0	61.0	100
AD21.2	17.0×21.2	38.0	72.0	100
AD25.5	21.0×25.5	40.0	80.0	100
AD28.5	23.0×28.5	44.0	92.0	50
AD34.5	29.0×34.5	53.0	113.0	50
AD42.5	36.0×42.5	61.0	140.0	50
AD54.5	48.0×54.5	78.0	180.0	25

PP聚丙烯波纹管

规格 Thread	内径×外径 int.×ext.(mm)	弯曲半径 Dimensions mm±10%		每卷米数米/卷 Lengths in rings m/roll
规格 Thread	内径×外径 int.×ext.(mm)	静态 Stat	动态 Dyn	每卷米数米/卷 Lengths in rings m/roll
AD10.0	6.5×10.0	16.0	37.0	100
AD11.6	8.00×11.6	18.0	43.0	100
AD13.0	9.50×13.0	21.0	48.0	100
AD15.8	12.0×15.8	26.0	56.0	100
AD18.5	14.3×18.5	37.0	70.0	100
AD21.2	17.0×21.2	44.0	79.0	100
AD25.5	21.0×25.5	49.0	88.0	100
AD28.5	23.0×28.5	52.0	104.0	50
AD34.5	29.0×34.5	58.0	123.0	50
AD42.5	36.0×42.5	68.0	152.0	50
AD54.5	48.0×54.5	84.0	193.0	25
