• Cable Markers 26-1
Overview

◆  Material: made from PVC, oil and erosion control, heat resisting up to 85oC.

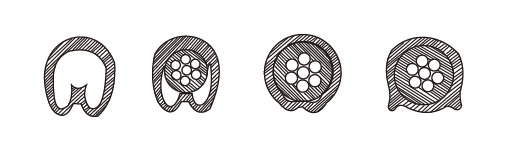

◆  Struction: the inside is hollow, but elastic, The diameter can change with the needed wire.


Technical Parameters
编 号
     Item NO.
适用电线Approx Wire号码
     Markers
包 装
     Packing
SQ( mm²)mm
EC-00.75~1.52.0~3.20~9
       A~Z
     + - / \
1000PCS/ROLL
EC-10.75~3.53.0~4.21000PCS/ROLL
EC-23.5~8.03.6~7.4500PCS/ROLL
EC-35.2~10.05.2~10.0350PCS/ROLL
EC-48~226.2~10.0250PCS/ROLL
