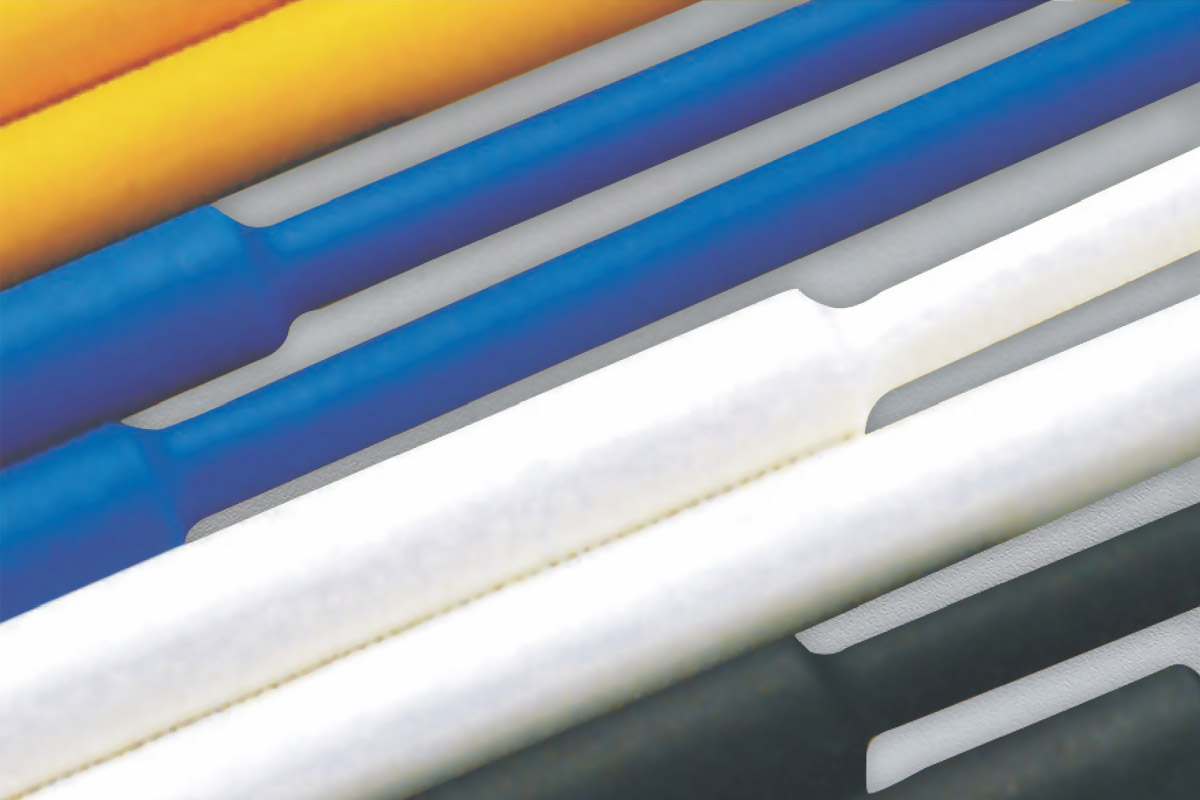

• Heat Shrinkable Tubings 29-1
Overview

◆  Function:
    1. wire coat and insulation.
    2. make the joint of terminal block and wire insulated.
    3. divide the colors.
    4. water-proof.
    5. protection and insulation of insistors and electrical capacitors.
◆  Standard color : black, white, red, blue, yellow, green, brown, grey, orange and purple.


Technical Parameters
编 号
     Item NO.
收缩前As Supplied收缩后After Shrinkang包装 Packing
     (m/roll)
内 径 I.D
     (mm)
厚度
     Thickness(mm)
D1(mm)D2(mm)
DRS-11.00.2±0.050.50.4±0.05200m/roll
DRS-1.51.50.2±0.050.750.4±0.05
DRS-22.00.25±0.051.00.45±0.1
DRS-2.52.50.25±0.051.250.45±0.1
DRS-33.00.25±0.051.50.45±0.1
DRS-3.53.50.25±0.051.750.45±0.1
DRS-44.00.25±0.052.00.45±0.1
DRS-55.00.35±0.052.50.55±0.1100m/roll
DRS-66.00.35±0.053.00.55±0.1
DRS-77.00.35±0.053.50.55±0.1
DRS-88.00.35±0.054.00.55±0.1
DRS-99.00.35±0.054.50.55±0.1
DRS-1010.00.35±0.055.00.60±0.1
DRS-1111.00.35±0.055.50.60±0.1
DRS-1212.00.35±0.16.00.70±0.1
DRS-1313.00.35±0.16.50.70±0.1
DRS-1414.00.35±0.17.00.70±0.1
DRS-1515.00.35±0.17.50.70±0.1
DRS-1616.00.35±0.18.00.70±0.1
DRS-1818.00.4±0.19.00.80±0.1
DRS-2020.00.5±0.110.00.90±0.1
DRS-2222.00.5±0.111.00.90±0.1
DRS-2525.00.5±0.112.50.90±0.150m/roll
DRS-2828.00.5±0.114.00.90±0.125m/roll
DRS-3030.00.5±0.115.01.00±0.2
DRS-3535.00.5±0.117.51.00±0.2
DRS-4040.00.5±0.120.01.00±0.2
DRS-5050.00.5±0.125.01.00±0.2
DRS-6060.00.6±0.130.01.20±0.2
DRS-7070.00.6±0.135.01.20±0.2
DRS-8080.00.6±0.140.01.20±0.2
DRS-9090.00.6±0.145.01.30±0.2
DRS-100100.00.7±0.150.01.30±0.2
DRS-1201200.7±0.160.01.30±0.2
DRS-1501500.8±0.175.01.60±0.2
