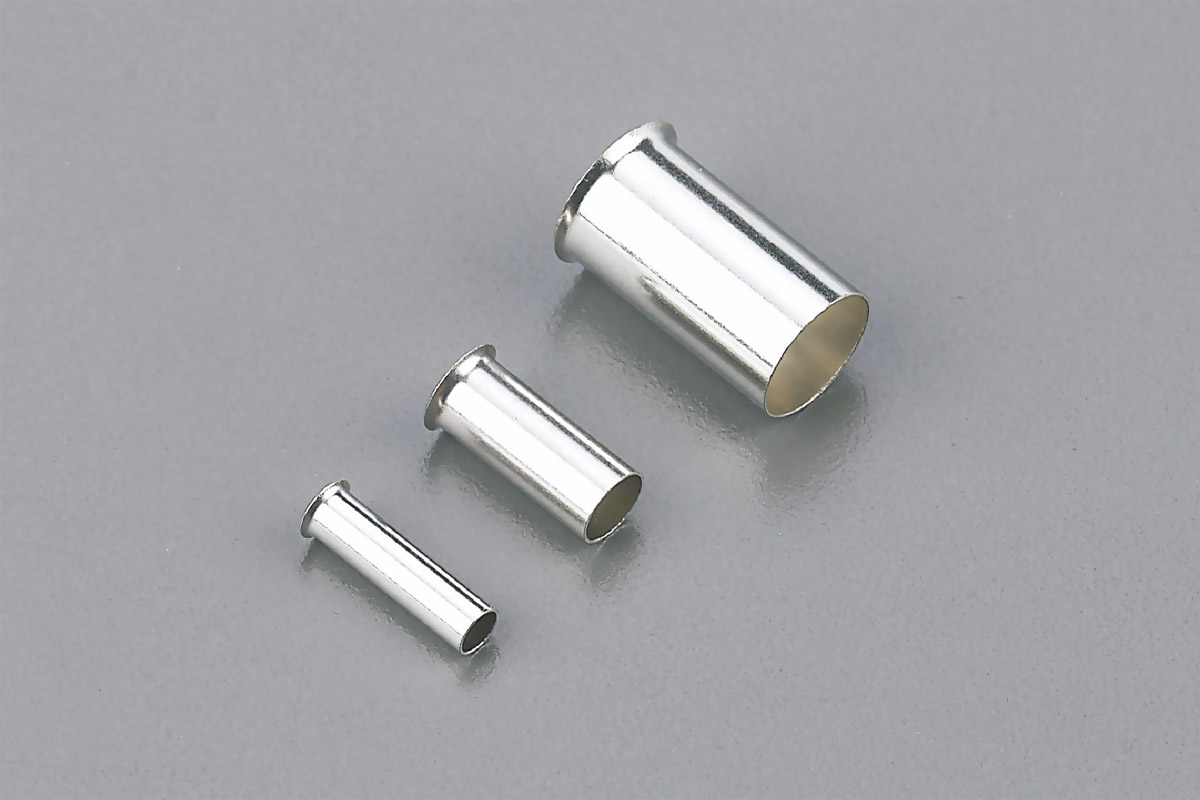

• Cord End Terminals TG 26-1
Overview


Technical Parameters
编 号
Item NO.

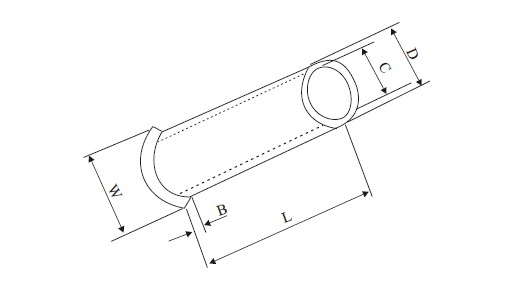

尺寸Dimension导线面积 Wire Range
L(mm)D(mm)C(mm)B(mm)W(mm)A.W.Gmm²
EN05066.01.31.00.72.1#220.5
EN75.66.01.51.20.72.5#200.75
EN10066.01.71.40.72.7#181.0
EN101010.0
EN15077.02.01.71.03.5#161.5
EN151010.0
EN25077.02.52.21.02.5#142.5
EN251212.0
EN40099.03.22.81.04.0#124.0
EN401212.0
EN601010.03.93.51.04.8#106.0
EN601212.0
EN601515.0
EN10-1212.04.94.51.25.8#710.0
EN10-1515.0
EN10-1818.0
EN16-1212.06.25.81.57.5#516.0
EN16-1515.0
EN16-1818.0
EN25-1616.07.97.51.89.2425
EN25-2222.0
EN35-1616.08.78.32.010235
EN35-2525.0
EN50-2020.010.910.32.012.4150
EN50-2525.0
