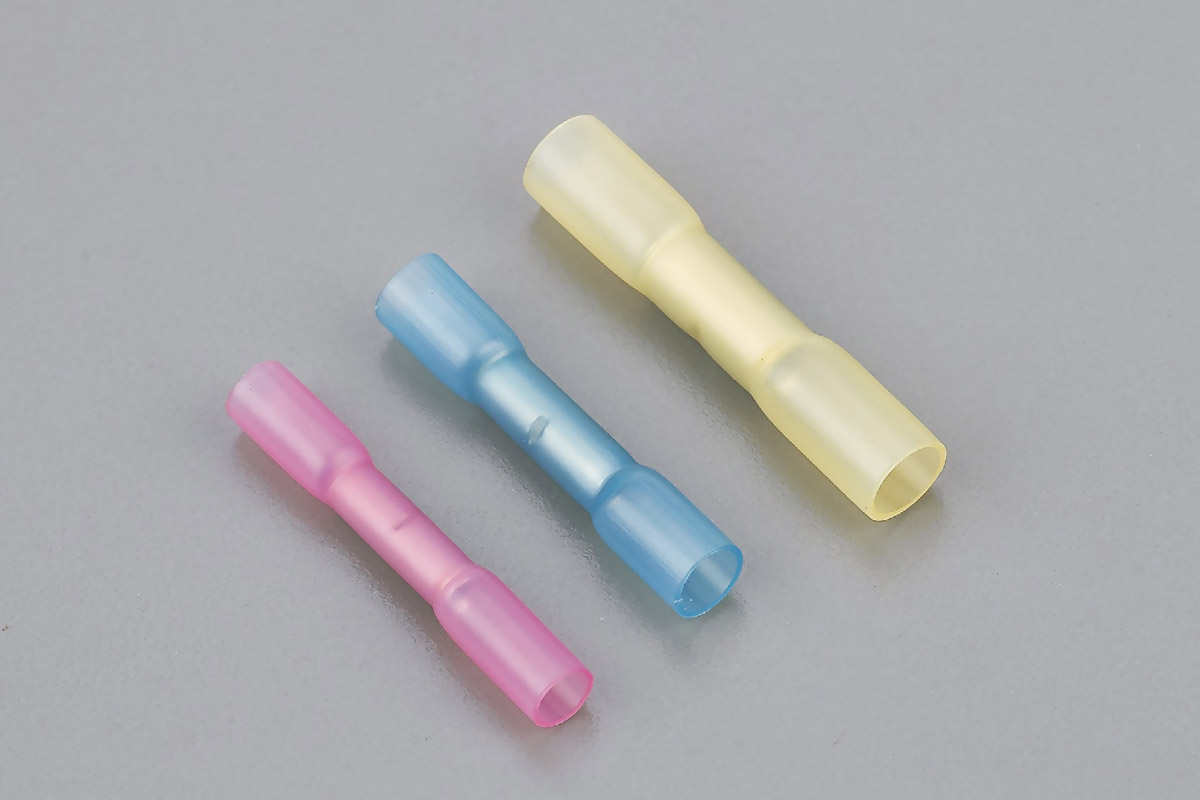

Overview
◆ Materials: outer layer (crosslinked thermal polyolefin), inner layer (hot-melt adhesive), connection tube (tin-plated copper tube).
◆ Shrinkage ratio: 4:1
◆ Features: insulation protection, waterproof, moisture-proof, salt spray corrosion; Excellent tightness, effective resistance to liquid and moisture invasion and corrosion; Semi-rigid polyolefin material, excellent mechanical properties and wear resistance, providing excellent wear resistance and stress protection for wiring harness joints and terminals; Excellent oil resistance, especially suitable for mechanical/hydraulic applications.
◆ Operating temperature: -55℃ to 125 ℃.
Technical Parameters
编 号 Item NO. | 尺寸 Dimension(mm) | 导线面积 A.W.G mm² | 颜 色 Color | ||
L | DΦ | dΦ | |||
KY-1 | 37 | 6.0 | 1.7 | 22-18 A.W.G 0.5-1.0mm2 | 红色 Red |
KY-2 | 37 | 7.5 | 2.3 | 16-14 A.W.G 1.5-2.5mm2 | 蓝色 Blue |
KY-5 | 52 | 8.0 | 3.4 | 12-10 A.W.G 4.0-6.0mm2 | 黄色 Yellow |
