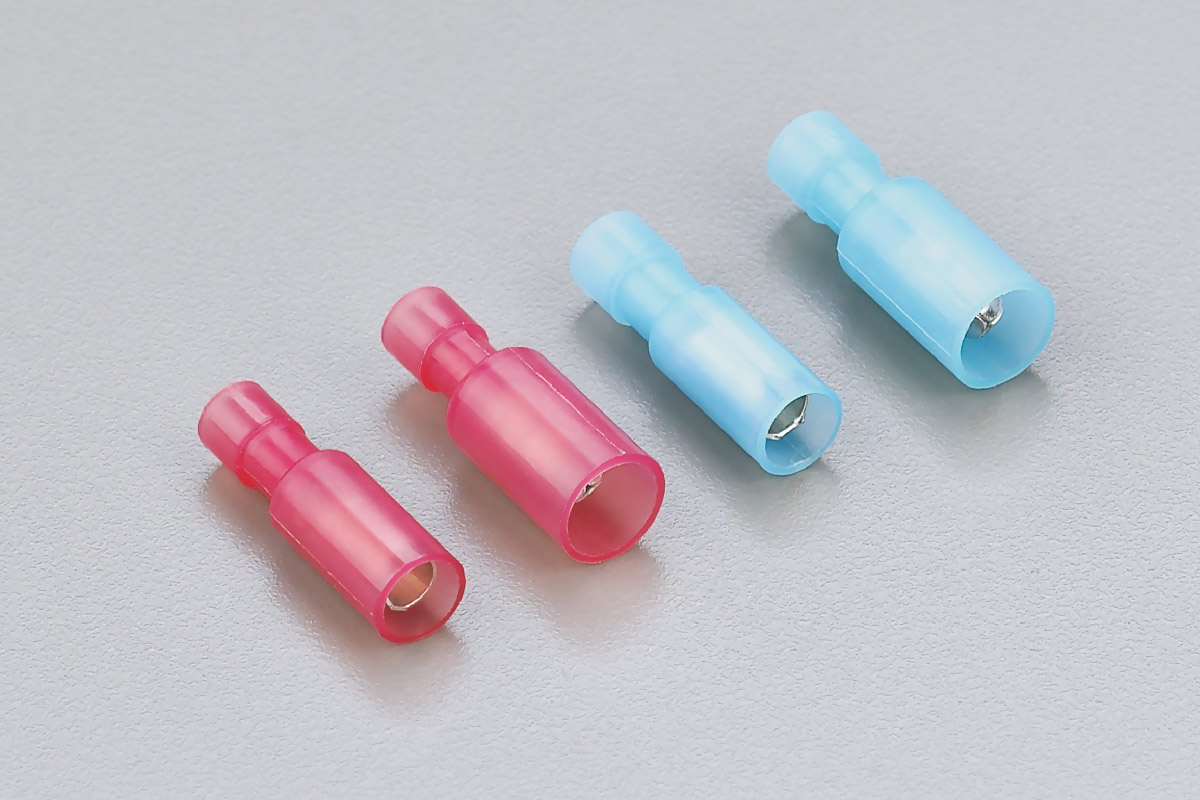

Bullet-shaped Male and Female Full-Insualting Joint(Nylon)

Labels:
  • Bullet-shaped Male and Female Full-Insualting Joint(Nylon) 28-1
Overview

Maximum current 22-16A.W.G:19A
16-14A.W.G:27A
Maximum withstand voltage: 105℃
Material: Brass
Insulator material: nylon

Technical Parameters
编 号
Item NO.

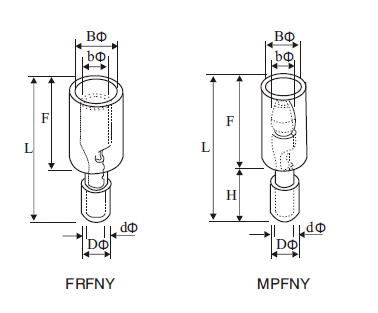

尺寸 Dimension (mm)导线面积
A.W.G mm²
颜 色
Color
LFH
FRFNY 1.25-1566.96.93.21.826.015.011.022-16A.W.G
0.5-1.5mm²
红色
Red
MPFNY 1.25-1567.43.93.21.827.516.511.022-16A.W.G
0.5-1.5mm²
红色
Red
FRFNY 2-1566.94.03.92.426.015.511.016-14A.W.G
1.5-2.5mm²
兰色
Blue
MPFNY 2-1567.44.03.92.427.516.511.016-14A.W.G
1.5-2.5mm²
兰色
Blue
