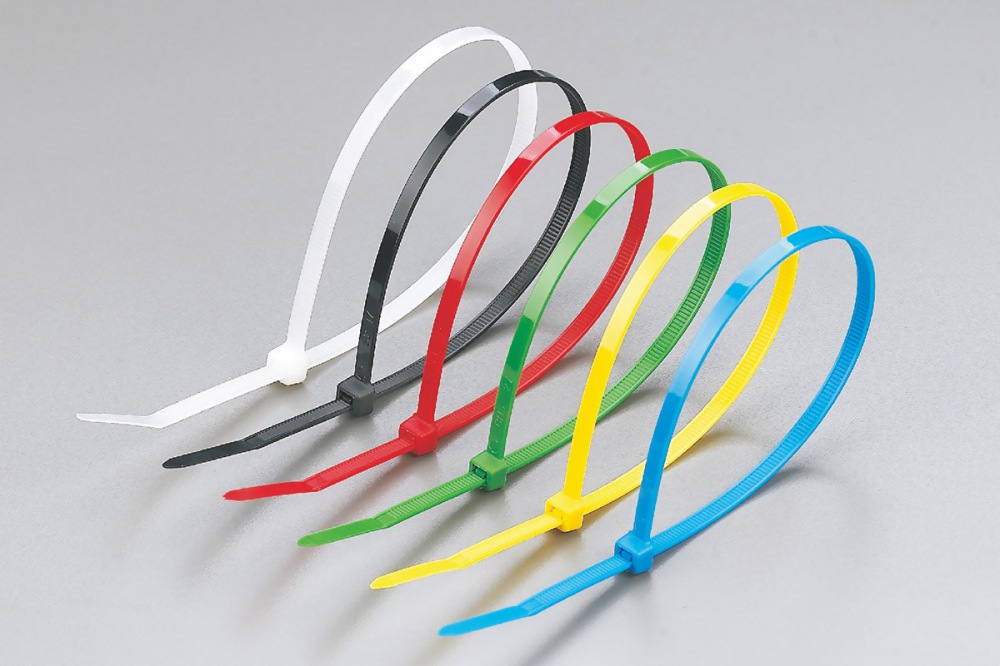

• Self-locking Nylon Cable Ties 1
Overview

◆ Material:Nylon 66, 94V-2 certificated by UL. Acid & erosio ncontrol, insulate well and not easy to aging、tensile strong.
◆ Application temperature:-40℃ to 85℃.
◆ Installation temperature:-35℃ to 85℃.
◆ Color: Natural,Black,UV black and other colors are available as requested.


Technical Parameters
编 号
Item NO.

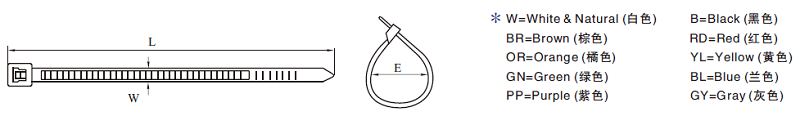

L(长)W(宽)
(mm)
最大捆扎范围
Max.Bundle Dia. E (mm)
拉 力
Min.loop Tensile Strength
InchmmLBSKGS
CHS-3×602 3/8″602.511188
CHS-3×803 3/16″802.516188
CHS-3×903 5/8″
902.518188
CHS-3×1004″1002.522188
CHS-3×1204 3/4″1202.528188
CHS-3×1405 1/2″1402.533188
CHS-3×1506″1502.535188
CHS-3×1606 1/4″1602.540188
CHS-3×2008″2002.553188
CHS-3×25010″2502.565188
CHS-4×1004″1003.6224018
CHS-4×1204 3/4″1203.6304018
CHS-4×1405 1/2″1403.6334018
CHS-4×1506″1503.6354018
CHS-4×1807″1803.6444018
CHS-4×2008″2003.6534018
CHS-4×2208 5/8″2203.6584018
CHS-4×25010″2503.6654018
CHS-4×28011″1803.6704018
CHS-4×30011 5/8″3003.6804018
CHS-4×37014 1/2″3703.61024018
CHS-5×1204 3/4″1204.6265022
CHS-5×1606 1/4″1604.6395022
CHS-5×1807″1804.6465022
CHS-5×1907 1/2″1904.6485022
CHS-5×2008″2004.85.5022
CHS-5×25010″2504.8655022
CHS-5×28011″2804.8705022
CHS-5×30011 8/5″3004.8825022
CHS-5×35013 3/4″3504.8305022
CHS-5×38015″3804.81055022
CHS-5×40015 3/4″4004.81085022
CHS-5×43017″4304.81155022
CHS-5×45017 3/4″4504.81305022
CHS-5×50019 11/16″5004.81505022
CHS-7×1506″1506.8338538
CHS-7×1807″1806.8438538
CHS-7×2008″2006.8508538
CHS-7×25010″2506.8658538
CHS-7×37014 1/2″3707.0988538
CHS-8×2008″2007.65012055
CHS-8×25010″2507.66312055
CHS-8×30011 5/8″3007.68012055
CHS-8×35013 3/4″3507.69012055
CHS-8×37014 1/4″3707.69812055
CHS-8×40015 3/4″4007.610512055
CHS-8×45017 3/4″4507.612512055
CHS-8×50019 11/16″5007.614512055
CHS-8×55021 1/16″5507.616012055
CHS-8×60023 5/8″6007.617012055
CHS-8×65025 9/16″6507.619012055
CHS-8×75029 9/16″7507.6220

120

55
CHS-9×2008″2009.05017580
CHS-9×30011 5/8″3009.07817580
CHS-9×40015 3/4″4009.010517580
CHS-9×45017 3/4″4509.012017580
CHS-9×53020 3/4″5309.015017580
CHS-9×55021 1/16″5509.016017580
CHS-9×60023 5/8″6009.017017580
CHS-9×65025 9/16″6509.019017580
CHS-9×70027 1/2″7009.020517580
CHS-9×76030″7609.022517580
CHS-9×81232″8129.024317580
CHS-9×92036 1/4″9209.026517580
CHS-9×102040 1/6″10209.029517580
CHS-9×115045 1/4″11509.031017580
CHS-9×122048″12209.034017580
CHS-9×135053″13509.038017580
CHS-9×155061″15509.047017580
CHS-10×45017 3/4″45010.012520091
CHS-10×50019 11/16″50010.014520091
CHS-12×30011 5/8″30012.780250114
CHS-12×40015 3/4″40012.7105250114
CHS-12×65025 9/16″65012.0190250114
CHS-12×75029 9/16″75012.0220250114
CHS-12×780

30 3/4"

78012.7230250114
CHS-12×1000

39 3/8"

100012.0275250114
CHS-13×54021 1/4″54013.0155250114
CHS-1.8×1004″1001.822146.5
CHS-1.9×1204 3/4″1201.928146.5
CHS-1.9×1506″1501.935146.5
CHS-2.0×2008″2002.050146.5
CHS-2.2×602 3/8″602.211148
CHS-2.2×803 3/16″802.218188
CHS-2.2×1004″1002.222188
CHS-2.2×1204 3/4″1202.228188
CHS-2.2×1506″1502.235188
CHS-2.2×2008″2002.950188
CHS-2.9×1506″1502.9353315
CHS-2.9×2008″2002.7503315
CHS-2.7×25010″2502.9653315
CHS-2.9×30011 5/8″3002.9803315
CHS-3.2×1506″1503.2354018
CHS-3.2×1807″1803.2424018
CHS-3.2×2008″2003.2504018
CHS-3.2×25010″2503.2654018
CHS-3.2×30011 5/8″3003.2804018
CHS-3.7×35013 3/4″3503.7904018
CHS-3.7×40015 3/4″4003.71084018
CHS-4.2×1807″1804.2425022
CHS-4.2×2008″2004.2505022
CHS-4.2×25010″2504.2655022
CHS-4.2×30011 5/8″3004.2805022
CHS-4.2×35013 3/4″3504.2905022
CHS-4.2×38015″3804.21025022
CHS-4.2×40015 3/4″4004.21055022
CHS-5.2×1807″1805.2426530
CHS-5.2×2008″2005.2506530
CHS-5.2×25010″2505.2656530
CHS-5.2×30011 5/8″3005.2806530
CHS-5.5×35013 3/4″3505.5906530
CHS-5.5×40015 3/4″4005.51056530
CHS-5.5×50019 11/16″5005.51506530
CHS-6.0×27010 5/8″2706.0656530
CHS-6.5×25010″2506.5658538
CHS-6.5×30011 5/8″3006.5808538
CHS-6.5×35013 3/4″3506.5908538
CHS-6.5×40015 3/4″4006.51058538
CHS-6.5×45017 3/4″4506.51258538
CHS-6.5×50019 11/16″5006.51458538
