Overview

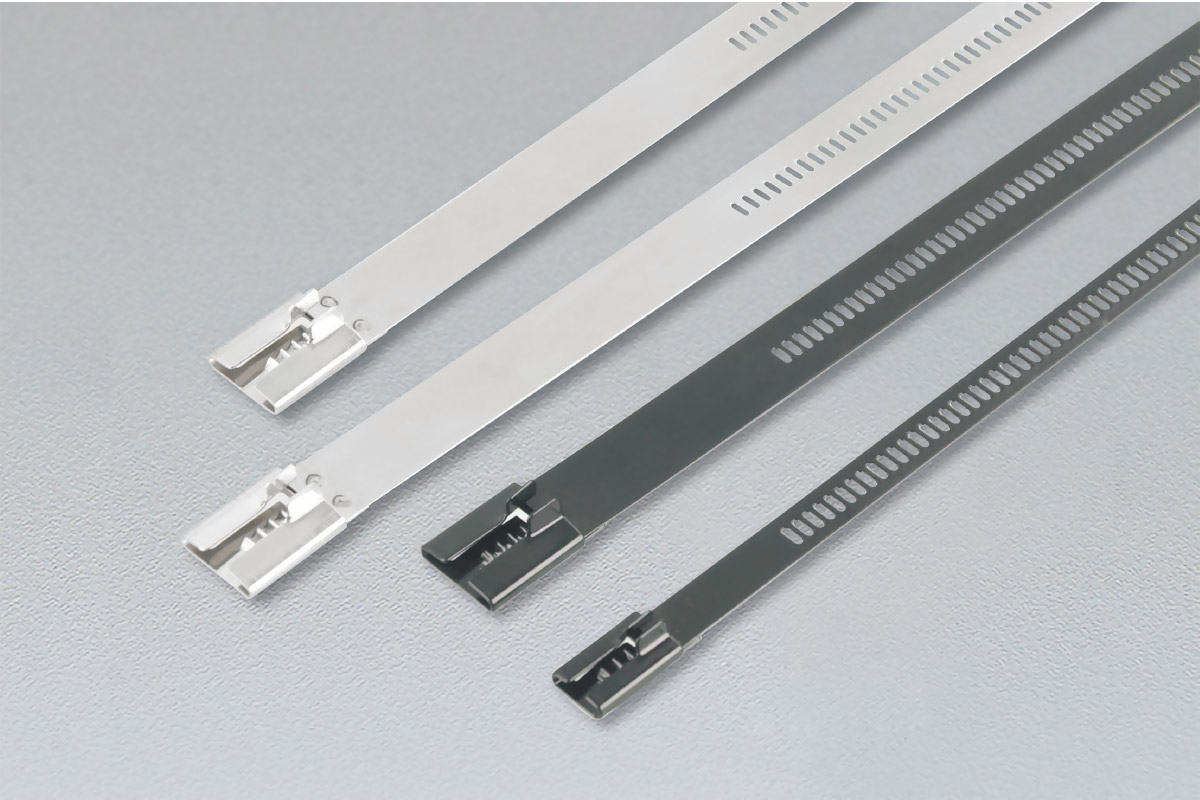

◆ Material:High corrosion resistant,Multi-lock type.
Good loop tensile strength can touch 250Lbs.
Manufactrued from type 304 and316 Stainless steel.
ldeal for used in telecommunication,electricity ,shipbuilding and oil & gas industry.
◆ Characteristic:Acid-resisting anticorrosion, high tensilestrength,simple and easy to use, etc.
◆ Working temperature:- 60℃ to 150℃
Technical Parameters
| 编 号 Item NO. | L(长) (mm) | W(宽) (mm) | （最大）捆扎范围 Max.Bundle Dia.(mm) | 最小拉力 Tensile Strength | |
| LBS | KGS | ||||
| MLT-7 x 150 | 150 | 7.0 | 33 | 400 | 180 |
| MLT-7 x 225 | 225 | 7.0 | 57 | 400 | 180 |
| MLT-7 x 300 | 300 | 7.0 | 81 | 400 | 180 |
| MLT-7 x 335 | 335 | 7.0 | 92 | 400 | 180 |
| MLT-7 x 400 | 400 | 7.0 | 113 | 400 | 180 |
| MLT-7 x 450 | 450 | 7.0 | 129 | 400 | 180 |
| MLT-7 x 490 | 490 | 7.0 | 141 | 400 | 180 |
| MLT-7 x 550 | 550 | 7.0 | 161 | 400 | 180 |
| MLT-7 x 600 | 600 | 7.0 | 176 | 400 | 180 |
| MLT-7 x 650 | 650 | 7.0 | 192 | 400 | 180 |
| MLT-7 x 700 | 700 | 7.0 | 208 | 400 | 180 |
| MLT-7 x 750 | 750 | 7.0 | 224 | 400 | 180 |
| MLT-7 x 800 | 800 | 7.0 | 240 | 400 | 180 |
| MLT-12 x150 | 150 | 12.0 | 33 | 800 | 360 |
| MLT-12 x225 | 250 | 12.0 | 57 | 800 | 360 |
| MLT-12 x300 | 300 | 12.0 | 81 | 800 | 360 |
| MLT-12 x335 | 335 | 12.0 | 92 | 800 | 360 |
| MLT-12 x400 | 400 | 12.0 | 113 | 800 | 360 |
| MLT-12 x450 | 450 | 12.0 | 129 | 800 | 360 |
| MLT-12 x490 | 490 | 12.0 | 141 | 800 | 360 |
| MLT-12 x550 | 550 | 12.0 | 161 | 800 | 360 |
| MLT-12 x600 | 600 | 12.0 | 176 | 800 | 360 |
| MLT-12 x650 | 650 | 12.0 | 192 | 800 | 360 |
| MLT-12 x700 | 700 | 12.0 | 208 | 800 | 360 |
| MLT-12 x750 | 750 | 12.0 | 224 | 800 | 360 |
| MLT-12 x800 | 800 | 12.0 | 240 | 800 | 360 |
