产品概述

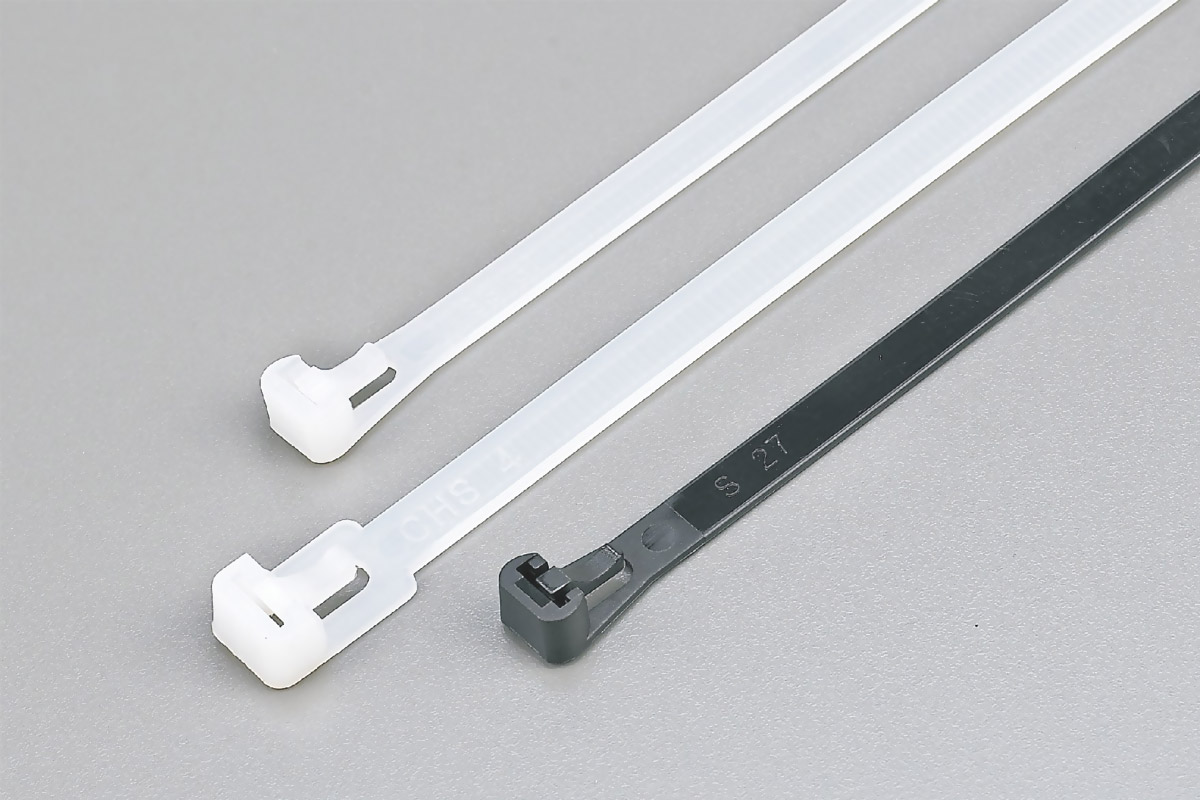

◆Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Natural, Black, UV black, other colors are available as requested.
◆Feature：Can be released for repeated use.
技术参数

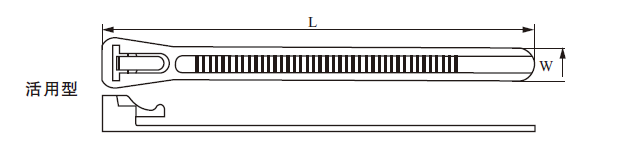

| 编 号 Item NO. | L(长) | W(宽) (mm) | 最大捆扎范围 Max.Bundle Dia. E (mm) | 最小拉力 Tensile Strength | ||
| Inch | mm | LBS | KGS | |||
| CHS-150RT | 6″ | 150 | 7.5 | 35 | 50 | 22 |
| CHS-200RT | 8″ | 200 | 7.5 | 45 | 50 | 22 |
| CHS-202RT | 8″ | 200 | 4.6 | 45 | 40 | 18 |
| CHS-250RT | 10″ | 250 | 7.5 | 60 | 50 | 22 |
| CHS-300RT | 12″ | 300 | 7.5 | 75 | 50 | 22 |
| CHS-370RT | 14 1/4″ | 370 | 7.5 | 95 | 50 | 22 |
| CHS-400RT | 15 3/4″ | 400 | 7.5 | 100 | 50 | 22 |
| CHS-505RT | 19 11/16″ | 500 | 8.5 | 140 | 75 | 34 |
