Overview
◆Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Natural, Black,UV black, other colors are available as requested.
◆Feature： Can be released for repeated use.
Technical Parameters

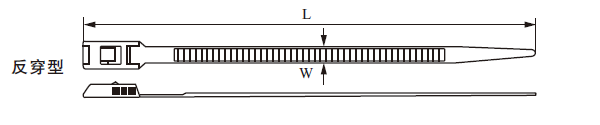

| 编 号 Item NO. | L(长) | W(宽) (mm) | (最大)捆扎范围 Max.Bundle DIA.(mm) | 最小拉力 Tensile Strength | ||
| Inch | mm | LBS | KGS | |||
| CHS-350RCT | 13 5/8″ | 350 | 7.3 | 90 | 50 | 22 |
| CHS-400RCT | 15 3/4″ | 400 | 8.0 | 105 | 50 | 22 |
| CHS-450RCT | 17 3/4″ | 450 | 8.0 | 118 | 50 | 22 |
| CHS-490RCT | 19 1/3″ | 490 | 9.5 | 135 | 65 | 30 |
| CHS-500RCT | 19 11/16″ | 500 | 9.0 | 140 | 65 | 30 |
