Overview

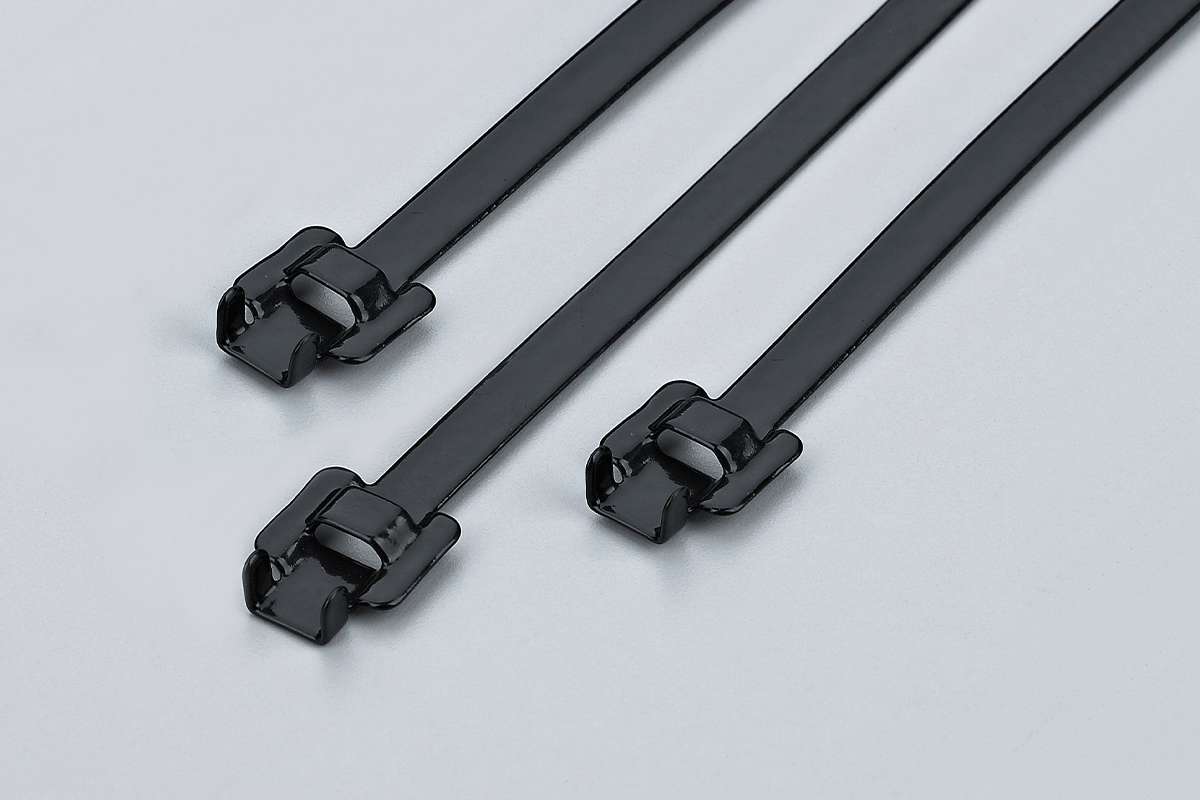

Releaseable type covered stainless steel cable ties
◆Epoxy coated type,made of high-strength,corrosion-resistant;
◆Manufactured from type 304 and 316 stainless steel;
◆Releasable use,unique buckle design for quick,easy application and re-use ldeal for inquiring electricity;
◆Temperature:Working temperature -40℃ to 85℃
Naked Releaseable Stainless Steel Cable Ties
◆Made of high-strength,corrosion-resistant 304 and 316 stainless steel releasable use.
◆Unique buckle design for quick easy application and re-use;
◆Ldeal for inquiring electricty, telecommunication,shipbuliding industy;
◆Temperature:Working temperature -60℃ to 550℃.
Technical Parameters
| 编 号 Item NO. | 长度 | 宽度 (mm) | 厚度 (mm) | （最大）捆扎范围 Max.bundle Dia.(mm) | 最小拉力 Tensile Strength | ||
| INCH | MM | LBS | KGS | ||||
| RTP-6.3×150 | 6″ | 150 | 6.3 | 0.4 | 33 | 180 | 80 |
| RTP-6.3×190 | 8″ | 190 | 6.3 | 0.4 | 46 | 180 | 80 |
| RTP-6.3×250 | 10″ | 250 | 6.3 | 0.4 | 65 | 180 | 80 |
| RTP-6.3×300 | 11 5/8″ | 300 | 6.3 | 0.4 | 81 | 180 | 80 |
| RTP-6.3×350 | 13 3/4″ | 350 | 6.3 | 0.4 | 97 | 180 | 80 |
| RTP-9.5×400 | 15 3/4″ | 400 | 9.5 | 0.4 | 113 | 225 | 100 |
| RTP-9.5×450 | 17 3/4″ | 450 | 9.5 | 0.4 | 129 | 225 | 100 |
| RTP-9.5×490 | 19 11/16″ | 490 | 9.5 | 0.4 | 141 | 225 | 100 |
| RTP-9.5×550 | 21 1/16″ | 550 | 9.5 | 0.4 | 161 | 225 | 100 |
| RTP-9.5×600 | 23 5/8″ | 600 | 9.5 | 0.4 | 176 | 225 | 100 |
| RTP-9.5×650 | 25 9/16″ | 650 | 9.5 | 0.4 | 192 | 225 | 100 |
| RTP-9.5×700 | 27 1/2″ | 700 | 9.5 | 0.4 | 208 | 225 | 100 |
| 编 号 Item NO. | 长度 | 宽度 (mm) | 厚度 (mm) | （最大）捆扎范围 Max.bundle Dia.(mm) | 最小拉力 Tensile Strength | ||
| INCH | MM | LBS | KGS | ||||
| RTN-6.3×150 | 6″ | 150 | 6.3 | 0.4 | 33 | 180 | 80 |
| RTN-6.3×190 | 8″ | 190 | 6.3 | 0.4 | 46 | 180 | 80 |
| RTN-6.3×250 | 10″ | 250 | 6.3 | 0.4 | 65 | 180 | 80 |
| RTN-6.3×300 | 11 5/8″ | 300 | 6.3 | 0.4 | 81 | 180 | 80 |
| RTN-6.3×350 | 13 3/4″ | 350 | 6.3 | 0.4 | 97 | 180 | 80 |
| RTN-9.5×400 | 15 3/4″ | 400 | 9.5 | 0.4 | 113 | 225 | 100 |
| RTN-9.5×450 | 17 3/4″ | 450 | 9.5 | 0.4 | 129 | 225 | 100 |
| RTN-9.5×490 | 19 11/16″ | 490 | 9.5 | 0.4 | 141 | 225 | 100 |
| RTN-9.5×550 | 21 1/16″ | 550 | 9.5 | 0.4 | 161 | 225 | 100 |
| RTN-9.5×600 | 23 5/8″ | 600 | 9.5 | 0.4 | 176 | 225 | 100 |
| RTN-9.5×650 | 25 9/16″ | 650 | 9.5 | 0.4 | 192 | 225 | 100 |
| RTN-9.5×700 | 27 1/2″ | 700 | 9.5 | 0.4 | 208 | 225 | 100 |
