Product introduction
◆Material: Polyamide 6.6 or heat stabilised(PA66HS),94V-2 certificateoby UL. Acid & erosion control,insulate well and not easy to agingtensile strong.
◆Application temperature: -40℃-85℃(PA66)-40℃-105℃(PA66HS)
◆Installation temperature: -10℃-85℃(PA66)-10℃-105℃(PA66HS)
Technical parameter

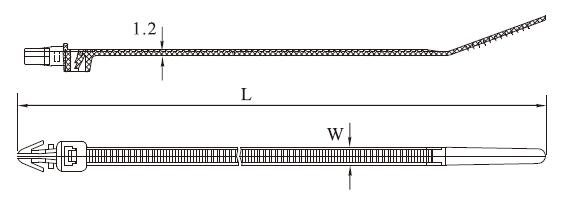

编号 Item NO. | L(长) | W(宽) (mm) | (最大)捆扎范围 Max.Bundle DIA.(mm) | 最小拉力 Tensile Strength | 孔径(φ) Hole Dia. | 机板厚度 Panel Thickness | ||
Inch | mm | LBS | KGS | mm | mm | |||
CHS-3.6×160PMT | 6.3/10'' | 160 | 3.6 | 38 | 30 | 13.5 | 4.5-6.0 | 2.5 |
