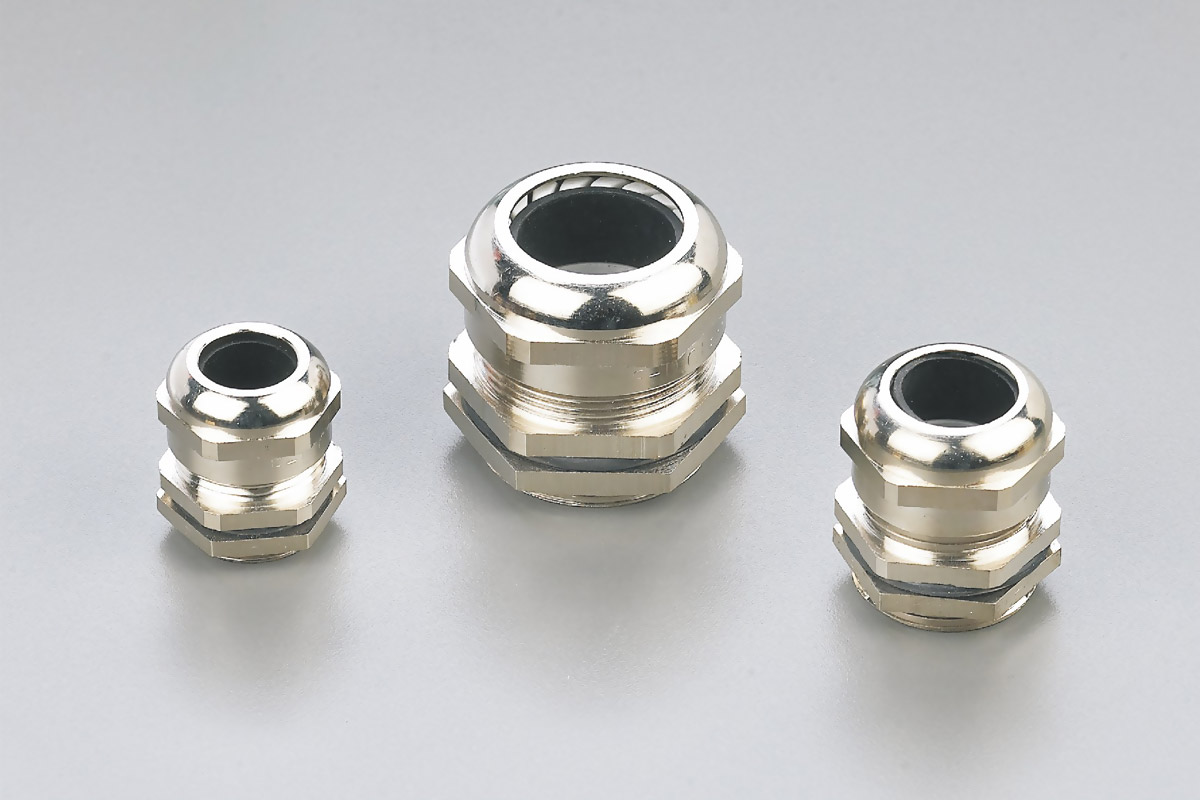

◆Material: Body: Nickel-plated brass,
Seal: PA66, Sealing: NBR.
◆Certification: CE, ROHS, REACH.
◆Protection rating: IP68.
◆Application temperature: Static condition:-40℃ to 100℃,short-time 120℃. Dynamic condition: -20℃ to 80℃,shorttime 100℃.
◆Thread length: Standard thread type is suitable for equipment with internal thread or with thin plate. Longer
thread type is suitable for thick plate.
◆Feature: special design of the clamp and seals, extremely easy installation, suit for wide range of cable, strong stretching resistance, waterproof, dust proof, resist to salt, acid, alcohol, grease and other solvent.
◆Application: fix the cable gland on the plate, insert cable through the assembled gland and tighten gland locknut until cable is secured.
◆Notes: Customization is available.

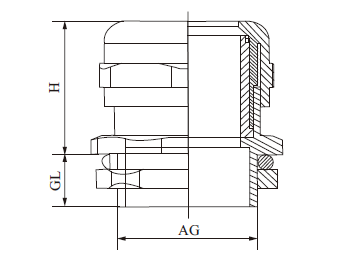

| 编 号 Item NO. | 适用电缆 (mm) Cable range | 螺纹外径 (mm) Thread O.D. | 机板口径 (mm) Mounting hole diameter | 螺纹长度 GL (mm) Thread length GL | 接合长度 H (mm) Joint length H | 扳手径 (mm) Spanner size |
| M8×1 | 5.5-2 | 8 | 8-8.2 | 5 | 16 | 12 |
| M10×1 | 6.-3 | 10 | 10-10.2 | 7 | 19 | 14 |
| M12×1.5 | 6.5-3 | 12 | 12-12.2 | 7 | 19 | 14 |
| M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M27×1.5 | 18-13 | 27 | 27-27.2 | 9 | 27 | 30 |
| M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M36×1.5 | 25-18 | 36 | 36-35.2 | 10 | 31 | 40 |
| M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 50/52 |
| M54×1.5 | 38-32 | 54 | 54-54.2 | 12 | 38 | 57 |
| M60×1.5 | 44-37 | 60 | 60-60.2 | 13 | 38 | 64 |
| M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
| PG7 | 6.5-3 | 12.5 | 12.5-12.7 | 7 | 19 | 14 |
| PG9 | 8-4 | 15.2 | 15.2-15.4 | 8 | 20 | 17 |
| PG11 | 10-5 | 18.6 | 18.6-18.8 | 8 | 21 | 20/21 |
| PG13.5 | 12-6 | 20.4 | 20.4-20.6 | 8 | 22 | 22 |
| PG16 | 14-10 | 22.5 | 22.5-22.7 | 9 | 23 | 24 |
| PG19 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| PG21 | 18-13 | 28.3 | 28.3-28.5 | 9 | 27 | 30 |
| PG25 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| PG29 | 25-18 | .37 | 37-37.2 | 11 | 31 | 40 |
| PG36 | 33-25 | 47 | 47-47.2 | 12 | 37 | 50 |
| PG42 | 38-32 | 54 | 54-54.2 | 13 | 38 | 57 |
| PG48 | 44-37 | 59.3 | 59.3-59.5 | 14 | 38 | 64 |
| PG63 | 52-42 | 72 | 72 | 15 | 42 | 77 |
