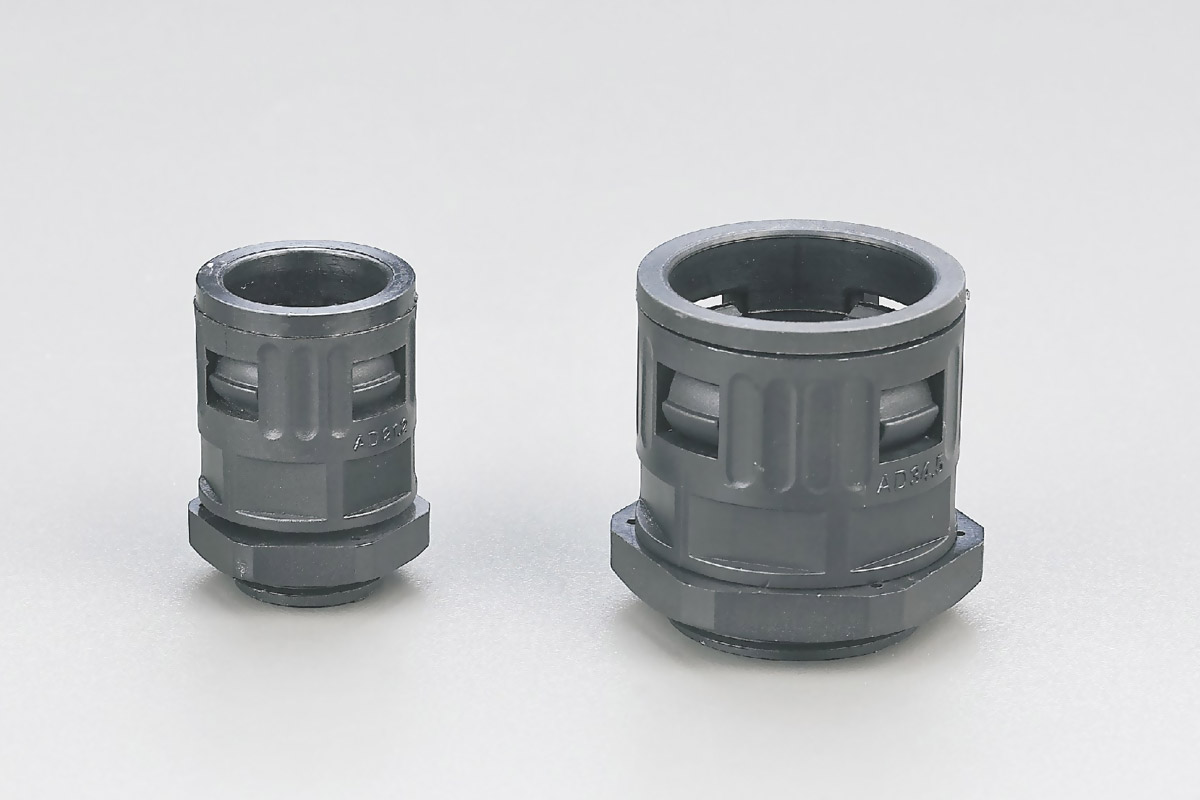

Corrugated pipe linker



Overview

◆ Material: plastic (Pa6).
◆ Temp: -40 ℃ to +115℃
◆ Colour: Black and grey.
◆ Properties: Rational tubing assembly due to onepiece screw connector with push-in lock Simple dismounting by displacing the snap-in sleeve Smallest outer dimen sions to be used under confined conditions resistant against oil and acids and solvents Free of silicon, cadmium, halogen Black connectors are UVresistant.
◆ Application: For protectively insulated electrical installations.

Technical Parameters

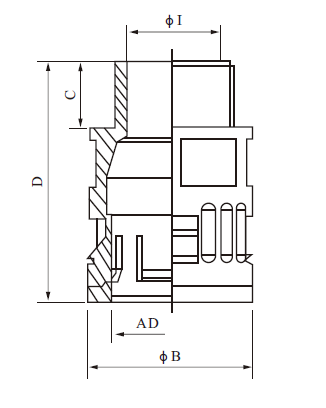

规格 Thread	适配软管外径 Applicable tubing Outer φ	螺纹长度 Length of thread C mm	孔径 Smallest inner φI mm	外径 Largest outer φB mm	整体长度 Total length D mm
M10×1.5	AD10.0	12.0	6.0	17.0	35.0
M12×1.5	AD10.0	12.0	7.0	17.0	35.0
M16×1.5	AD13.0	12.0	7.0	20.0	37.0
M16×1.5	AD13.0	12.0	10.0	20.0	37.0
M16×1.5	AD15.8	12.0	11.5	23.0	39.5
M18×1.5	AD15.8	12.0	12.0	23.0	39.5
M20×1.5	AD18.5	13.0	14.5	26.0	42.0
M20×1.5	AD21.2	13.0	15.5	29.5	45.0
M22×1.5	AD21.2	13.0	17.0	29.5	45.0
M24×1.5	AD21.2	13.0	17.0	29.5	45.0
M25×1.5	AD21.2	13.0	17.0	29.5	45.0
M25×1.5	AD25.5	13.0	20.5	34.0	46.5
M25×1.5	AD28.5	13.0	20.5	37.0	47.0
M27×2.0	AD28.5	13.0	22.5	37.0	47.0
M30×1.5	AD28.5	13.0	23.5	37.0	47.0
M32×1.5	AD28.5	13.0	23.5	37.0	47.0
M32×1.5	AD34.5	15.0	26.0	44.0	51.0
M33×2.0	AD34.5	15.0	26.0	44.0	51.0
M36×2.0	AD34.5	15.0	30.0	44.0	51.0
M40×1.5	AD34.5	15.0	30.0	44.0	51.0
M40×1.5	AD42.5	15.0	33.0	52.0	54.0
M42×2.0	AD42.5	15.0	35.0	52.0	54.0
M48×2.0	AD42.5	15.0	36.5	52.0	54.0
M50×1.5	AD42.5	15.0	36.5	52.0	54.0
M50×1.5	AD54.5	16.0	43.0	64.0	55.0
M56×2.0	AD54.5	16.0	48.0	64.0	55.0
M60×2.0	AD54.5	16.0	48.0	64.0	55.0
M63×1.5	AD54.5	16.0	48.0	64.0	55.0
PG7	AD10.0	12.0	7.0	17.0	35.0
PG9	AD13.0	12.0	10.0	20.0	37.0
PG11	AD15.8	12.0	12.0	23.0	39.0
PG13.5	AD18.5	13.0	14.5	26.0	42.0
PG16	AD21.2	13.0	17.0	29.5	45.0
PG21	AD25.5	13.0	21.0	34.0	46.5
PG21	AD28.5	13.0	23.5	37.0	47.0
PG29	AD34.5	15.0	30.0	44.0	51.0
PG36	AD42.5	15.0	36.5	52.0	54.0
PG48	AD54.5	16.0	48.0	64.0	55.0
