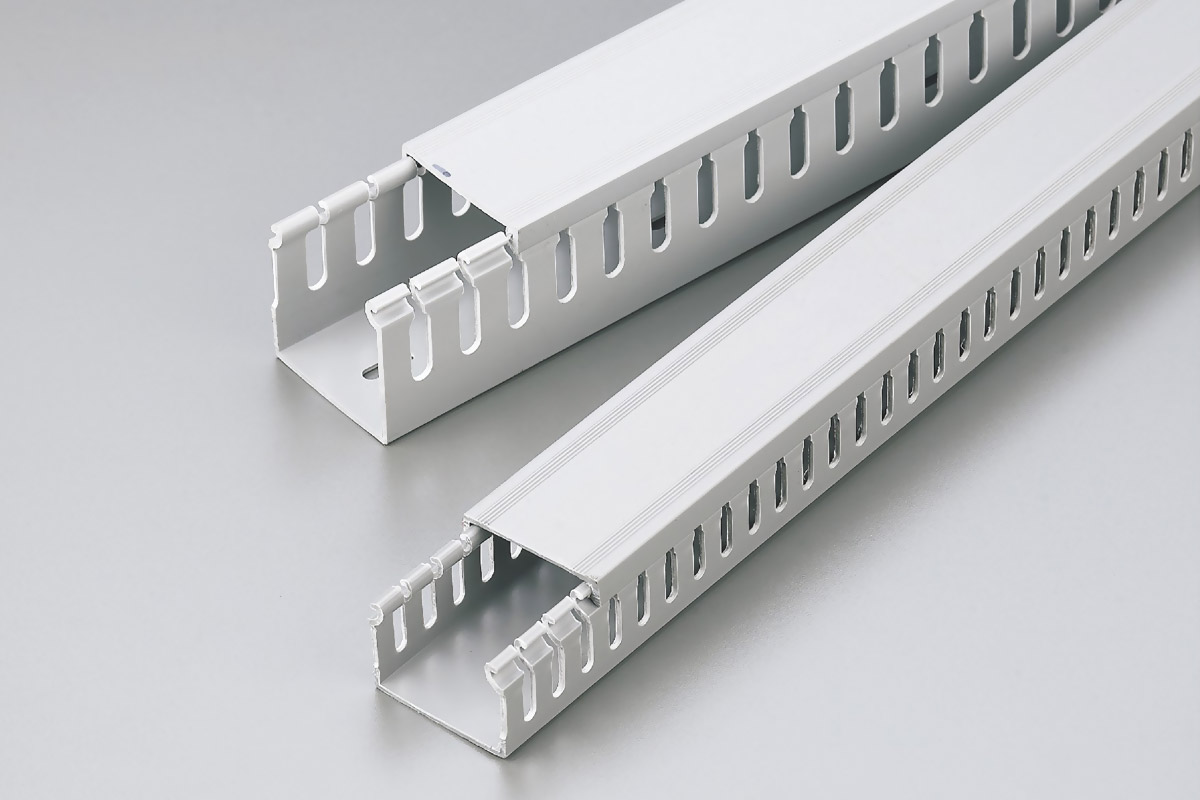

• Wiring Duct(slotted) 24-1
Overview

◆  Material:made from PVC(grey), good insulation and heat-resistingup to 85℃.
◆  Struction:made up of duct bottom and lid, with two out-holes designd at the bottom.


Technical Parameters
编 号
Item NO.
高×宽
(mm)
厚度
(mm)
孔宽(A)
(mm)

孔距(B)
(mm)

电 线 容 量
Contained Wire(1.5² )
PXC-201520×151.5465-10PCS
PXC-202020×201.56810-15PCS
PXC-202520×251.56810-20PCS
PXC-252525×251.54610-25PCS
PXC-254025×401.581020-40PCS
PXC-254525×451.581025-40PCS
PXC-256025×601.581045-60PCS
PXC-258025×801.581050-70PCS
PXC-301530×151.5005-15PCS
PXC-302030×201.54610-20PCS
PXC-302530×251.54615-25PCS
PXC-303030×301.54620-30PCS
PXC-303530×351.54630-45PCS
PXC-304030×401.54635-50PCS
PXC-305030×501.54645-60PCS
PXC-352535×251.54625-35PCS
PXC-353535×351.54640-55PCS
PXC-402540×251.56820-40PCS
PXC-403040×301.56835-50PCS
PXC-403540×351.56840-50PCS
PXC-404040×401.56845-55PCS
PXC-406040×601.56860-80PCS
PXC-408040×801.568100-120PCS
PXC-452545×251.56925-40PCS
PXC-453545×351.56940-55PCS
PXC-454545×451.56960-70PCS
PXC-456545×651.56990-100PCS
PXC-501550×151.50025-35PCS
PXC-502550×251.56925-45PCS
PXC-503050×301.56930-55PCS
PXC-503550×351.56950-60PCS
PXC-504050×401.56960-70PCS
PXC-504550×451.56970-85PCS
PXC-505050×501.56990-100PCS
PXC-505550×551.869100-110PCS
PXC-506050×601.869110-125PCS
PXC-508050×801.8810180-200PCS
PXC-5010050×1002.1810220-250PCS
PXC-602560×251.56945-60PCS
PXC-604060×401.56990-100PCS
PXC-606060×601.869140-160PCS
PXC-608060×801.8810250-300PCS
PXC-6010060×1002.1810230-270PCS
PXC-652565×251.5810100-110PCS
PXC-654565×451.5810180-200PCS
PXC-656565×651.8810200-220PCS
PXC-755075×501.8810140-160PCS
PXC-802585×251.56860-70PCS
PXC-803580×351.568160-180PCS
PXC-804080×401.568100-120PCS
PXC-804580×451.568180-200PCS
PXC-805080×501.568200-220PCS
PXC-805580×551.8610240-290PCS
PXC-806080×601.8610250-300PCS
PXC-808080×801.8810280-350PCS
PXC-8010080×1001.8810300-400PCS
PXC-10033100×332.11012110-120PCS
PXC-10040100×402.11012130-180PCS
PXC-10050100×502.11012210-250PCS
PXC-10060100×602.11012230-270PCS
PXC-10080100×802.11012300-380PCS
PXC-100100100×1002.11012300-400PCS
PXC-130100130×1002.11012350-500PCS
